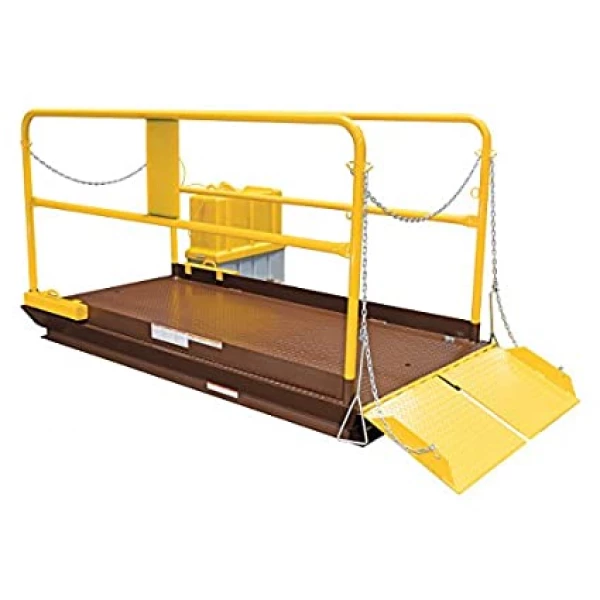

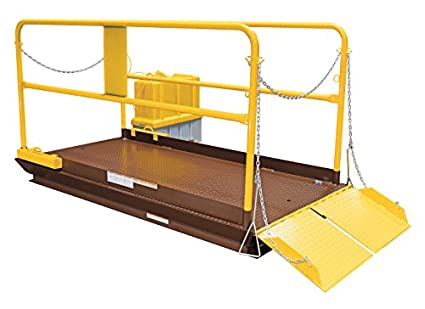

Premium Truck Scissor Dock Lifts
Premium Truck Scissor Dock Lifts Features:
Save time and reduce man-hours where there are no docks with a Truck Scissor Dock Lift. The pit or surface mount has an optional approach ramp. Engineered and designed for maximum safety and efficiency. The checkered plate deck is made of heavy gauge steel for years of use.
Hydraulic cylinders feature emergency velocity fuse if line breaks. It comes complete with upper travel limit switch and overload relief valve. The push-button control is on a 20 foot long coil cord. Pre-wired control box includes magnetic starter and overload fuse. High visibility safety yellow removable handrails with fixed toe boards are standard. Includes beveled toe-guards and electric toe-guards around perimeter of platform. External 6.5 HP 460V, 3-phase, 60 Hz motor can be located up to 8 feet away from lift (weighs 300 pounds)
Safety Features
The electric toe-guard is a patented feature essential to the safety of personnel. The guard is made from L-shaped aluminum extrusion and hangs below the entire perimeter of the deck. If the Scissor Dock is being lowered while an object such as a person’s hand or foot is in its path, the guard will be triggered and electrically stop the table from lowering.
Once the object is removed, the table will once again be operable; there is no need to reset the unit. Without toe-guard provisions, scissor tables do not meet OSHA or ANSI standards and are extremely dangerous to operate.
Premium Truck Scissor Dock Lifts | ||||||
Model | Platform Size | Lowered | Raised | Capacity | Overall Frame | Wt. |
(WxL) | Height | Height | (lbs) | Size (WxL) | (lbs) | |
WL-100-5-48 | 48″x96″ | 8″ | 68″ | 5,000 | 41″x93″ | 2856 |
WL-100-5-68 | 72″x96″ | 8″ | 68″ | 5,000 | 62″x93″ | 2902 |
WL-100-5-78 | 84″x96″ | 8″ | 68″ | 5,000 | 62″x93″ | 3059 |
WL-100-5-88 | 96″x96″ | 8″ | 68″ | 5,000 | 86″x93″ | 3952 |
WL-100-5-610 | 72″x120″ | 8″ | 68″ | 5,000 | 62″x118″ | 3823 |
WL-100-5-710 | 84″x120″ | 8″ | 68″ | 5,000 | 62″x118″ | 4027 |
WL-100-5-810 | 96″x120″ | 8″ | 68″ | 5,000 | 86″x118″ | 4107 |
WL-100-6-68 | 72″x96″ | 10″ | 70″ | 6,000 | 62″x93″ | 3415 |
WL-100-6-78 | 84″x96″ | 10″ | 70″ | 6,000 | 62″x93″ | 3616 |
WL-100-6-88 | 96″x96″ | 10″ | 70″ | 6,000 | 86″x93″ | 4172 |
WL-100-6-610 | 72″x120″ | 10″ | 70″ | 6,000 | 62″x118″ | 3939 |
WL-100-6-710 | 84″x120″ | 10″ | 70″ | 6,000 | 62″x118″ | 4038 |
WL-100-6-810 | 96″x120″ | 10″ | 70″ | 6,000 | 86″x118″ | 4301 |
WL-100-8-68 | 72″x96″ | 10″ | 70″ | 8,000 | 62″x93″ | 4396 |
WL-100-8-78 | 84″x96″ | 10″ | 70″ | 8,000 | 62″x93″ | 4592 |
WL-100-8-88 | 96″x96″ | 10″ | 70″ | 8,000 | 86″x93″ | 4698 |
WL-100-8-610 | 72″x120″ | 10″ | 70″ | 8,000 | 62″x118″ | 4807 |
WL-100-8-710 | 84″x120″ | 10″ | 70″ | 8,000 | 62″x118″ | 4193 |
WL-100-8-810 | 96″x120″ | 10″ | 70″ | 8,000 | 86″x118″ | 5157 |
WL-100-10-68 | 72″x96″ | 14″ | 72″ | 10,000 | 62″x93″ | 5804 |
WL-100-10-78 | 84″x96″ | 14″ | 72″ | 10,000 | 62″x93″ | 5991 |
WL-100-10-88 | 96″x96″ | 14″ | 72″ | 10,000 | 86″x93″ | 6221 |
WL-100-10-610 | 72″x120″ | 14″ | 72″ | 10,000 | 62″x118″ | 6081 |
WL-100-10-710 | 84″x120″ | 14″ | 72″ | 10,000 | 62″x118″ | 6224 |
WL-100-10-810 | 96″x120″ | 14″ | 72″ | 10,000 | 86″x118″ | 4562 |
WL-100-10-612 | 72″x144″ | 14″ | 72″ | 10,000 | 62″x118″ | 6504 |
WL-100-10-712 | 84″x144″ | 14″ | 72″ | 10,000 | 62″x118″ | 6690 |
WL-100-10-812 | 96″x144″ | 14″ | 72″ | 10,000 | 86″x118″ | 6876 |
WL-100-12-68 | 72″x96″ | 14″ | 72″ | 12,000 | 62″x93″ | 6387 |
WL-100-12-78 | 84″x96″ | 14″ | 72″ | 12,000 | 62″x93″ | 6573 |
WL-100-12-88 | 96″x96″ | 14″ | 72″ | 12,000 | 86″x93″ | 6731 |
WL-100-12-610 | 72″x120″ | 14″ | 72″ | 12,000 | 62″x118″ | 6620 |
WL-100-12-710 | 84″x120″ | 14″ | 72″ | 12,000 | 62″x118″ | 6807 |
WL-100-12-810 | 96″x120″ | 14″ | 72″ | 12,000 | 86″x118″ | 6993 |
WL-100-12-612 | 72″x144″ | 14″ | 72″ | 12,000 | 62″x118″ | 7098 |
WL-100-12-712 | 84″x144″ | 14″ | 72″ | 12,000 | 62″x118″ | 7225 |
WL-100-12-812 | 96″x144″ | 14″ | 72″ | 12,000 | 86″x118″ | 7436 |
Please contact Industrial Manlifts for specifications and RFQ’s.
Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (727) 490-8839.
