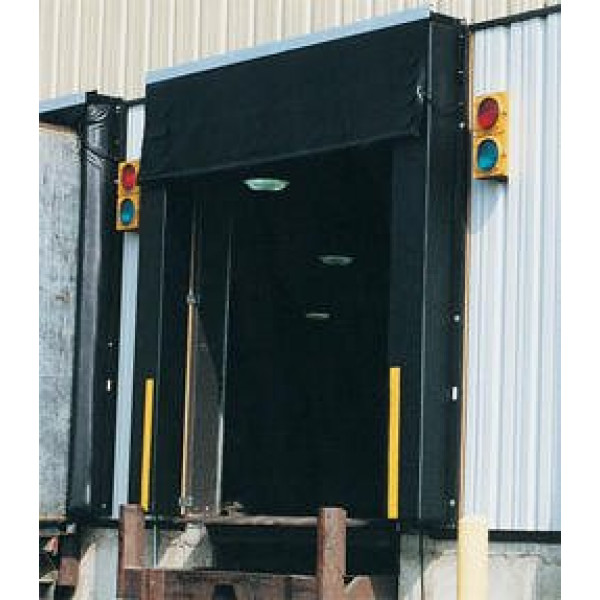

Dock Seal Shelter Combinations
Dock Seal Shelter Combinations combines the advantage of low cost, excellent sealing action an designed for maximum energy savings with long-lasting features.
Dock Seal Shelter Combinations
The Dock Seal Shelter Combinations combines the advantage of low cost, excellent sealing action an designed for maximum energy savings with long-lasting features.
Dock Seal Shelter Combinations Features:
- For use with an 8'W x 10'H door.
- Top (header) is constructed of wolmanized lumber and is built with a slope to allow for water run-off.
- Header measures 114"W with a 30" drop curtain.
- Side (verticals) measure 120" tall and contain high density foam mounted to treated lumber.
- Once mounted, the face of the vertical will measure 12"W and will taper to 91/2" at wall.
- Verticals are mounted on wooden 2" x 12" to allowing wall mounting down the length of the vertical pieces.
- Applications with a flush dock to building in conjunction with an Edge-O-Dock use a 20" projection Dock Seal.
Dock Seal Shelter Combinations Specifications:
| Dock Seal/Shelter Combination | |||||
| Model Number | Projection | Overall Height | Overall Width | Door Openings | Weight lbs. |
| D-150/650-10 | 10" | 126" | 114" | 8' X 10' | 230 |
| D-150/650-11 | 11" | 126" | 114" | 8' X 10' | 242 |
| D-150/650-12 | 12" | 126" | 114" | 8' X 10' | 253 |
| D-150/650-13 | 13" | 126" | 114" | 8' X 10' | 265 |
| D-150/650-14 | 14" | 126" | 114" | 8' X 10' | 276 |
| D-150/650-15 | 15" | 126" | 114" | 8' X 10' | 288 |
| D-150/650-16 | 16" | 126" | 114" | 8' X 10' | 299 |
| D-150/650-17 | 17" | 126" | 114" | 8' X 10' | 311 |
| D-150/650-18 | 18" | 126" | 114" | 8' X 10' | 322 |
| D-150/650-19 | 19" | 126" | 114" | 8' X 10' | 334 |
| D-150/650-20 | 20" | 126" | 114" | 8' X 10' | 345 |
