Pallet Washer



Pallet Washer Features:

Our Plastic Pallet Washer cabinet allows you to rinse, clean and remove debris that can accumulate on pallets.  Constructed entirely of stainless steel, simply plug in your existing pressure washing hose, using the snap connector provided.  There is minimal installation requirements, which require a connection to a minimum of 6 GPM @2500 PSI.

Stainless steel pipe with (3) 65 degree spray nozzles on each side of the cabinet, with (1) 65 degree spray nozzle on top.  Since there are no moving parts, this washer cabinet is perfect for low volume applications involving slightly soiled pallets

Optional Electric Pressure Washer, heavy-duty commercial grade.  Comes with magnetic motor starter and industrial rocker on/off switch for pump motor with auto start/stop function.  Wand assembly is stainless steel with variable pressure, 4 quick disconnects, stainless steel nozzles, down-stream detergent injector.

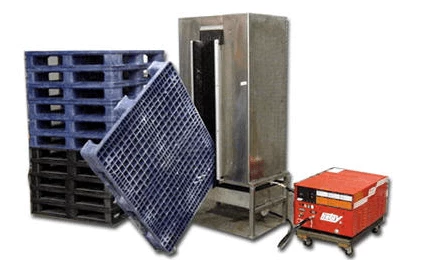

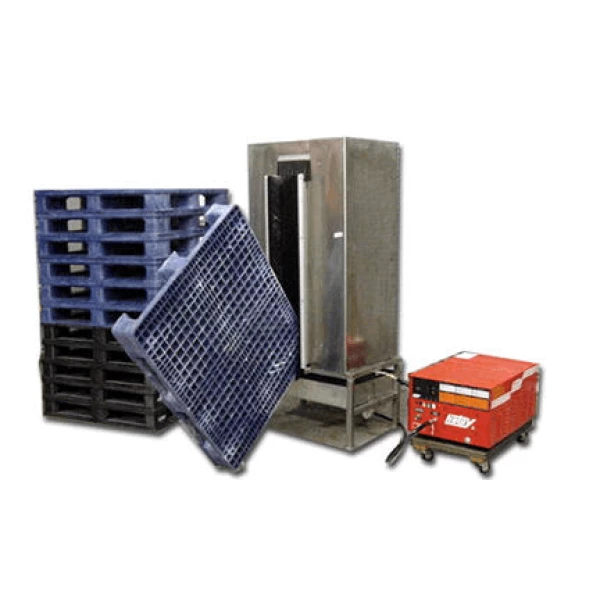

Stainless Steel Pallet Washing Cabinet
Model	Opening	Reservoir	Overall	Wt.
	Pallet Size		Dimensions	(lbs)
			(HxLxW)
PPW-748	7"Wx48"H	10 Gallon wastewater tank w/ drain hole	76"x39"x39"	395



Optional Electric Pressure Washer
Model	Overall	Water	Motor	Hose	Wt.
	Dimensions	Pump			(lbs)
	(HxLxW)	Pressure	230V/460V,	3/8" ID	325
OEPW-1700	30"x30.5"x20"	2500 PSI	3 PH, 10HP	50'

Please contact Industrial Manlifts for specifications and RFQ's.
