Description

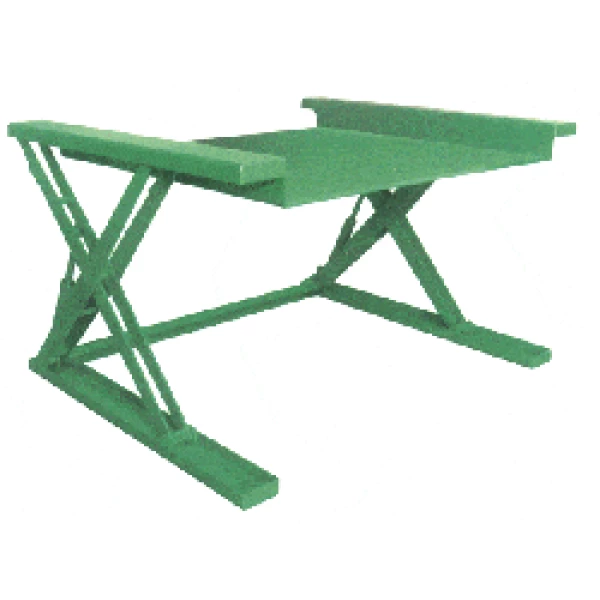

Low Profile Zero-Low Lift Tables

IML’S new Low Profile Zero-Low Lift Table brings load even closer to the operator to save time, improve safety, reduce worker fatigue, boost morale–all providing increased productivity and profits!

1000 & 2500 lb. capacities, up to 48 in. lift height
Lower, narrower fenders provide easier access by operator
Designed for easier load by pallet truck

• Lower fenders permit a pallet truck to enter table with a loaded pallet raised above the fenders, enabling the pallet to be set on the fenders, close to operators reach. May eliminate need for lift trucks.

Wide variety of deck sizes available to fit any size load
Electric or air operation

• Power options are air (use suffix -A), electric 110V AC single phase, or 22/440V AC, 3 phase; with a choice of 110 volt push-button or foot-pedal control.

Double Acting Cylinder Package

• All standard scissor lift tables have hydraulic lift up and gravity lowering.  If lowering speed is required, then order optional Double Acting Power System

Lift Table Options:



Capacity (lb.)	Platform Size (in.)	Lowered Height (in.)	Vertical Lift (in.)	Overall Size (in.)	Lowered Height (in.)	Overall Height (in.)	Model Number
							Electric Motor (Air Motor suffix -A)
1000	26 x 48	3/8	32	40 x 52	5	37	ZLLPC-2648E
1000	38 x 48	3/8	32	52 x 52	5	37	ZLLPC-3848E
1000	44 x 48	3/8	32	58 x 52	5	37	ZLLPC-4448E
1000	50 x 48	3/8	32	64 x 52	5	37	ZLLPC-5048E
2500	26 x 48	1/2	32	42 x 52	6	38	ZLLPF-2648E
2500	38 x 48	1/2	32	54 x 52	6	38	ZLLPF-3848E
2500	44 x 48	1/2	32	60 x 52	6	38	ZLLPF-4448E
2500	50 x 48	1/2	32	66 x 52	6	38	ZLLPF-5048E
2500	38 x 72	1/2	46	54 x 76	7	52	ZLLPF-3872E
2500	50 x 72	1/2	46	66 x 76	7	52	ZLLPF-5072E
NOTE: Manual, battery, air, & gas powered units also available.
