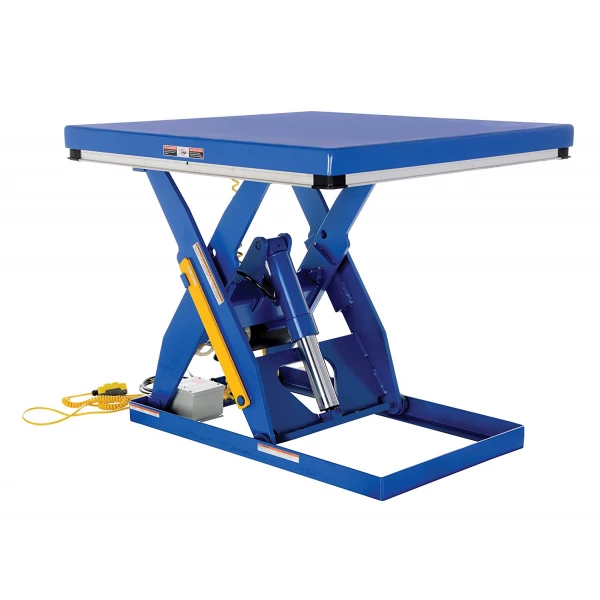

Electric Hydraulic Scissor Lift Table – Series EHLT

Electric Hydraulic Scissor Lift Table - Series EHLT



Electric Hydraulic Scissor Lift Table - Series EHLT Features:

Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include: electric toe guard to protect pinch points during lowering of the table, internal brass velocity fuse to maintain platform height in event of hose or fitting failure, 24V AC pushbutton hand control, maintenance prop, and upper travel limit switch to stop table at maximum height.  2HP, 460V, 3 phase, 60 Hz totally enclosed motor standard, other voltages available. 3000 psi hydraulic component rating.

Quickship Scissor Lift Tables (460V 3 Phase Standard)
Model PDF's Platform Size (WxL) Capacity (lbs) Raised Height Lowered Height Voltage/ Phase Wt. (lbs)
EHLT-2448-3-43 24"x48" 3,000 43" 7" 460/3 694
EHLT-3060-3-43 30"x60" 3,000 43" 7" 460/3 753
EHLT-4048-3-43 40"x48" 3,000 43" 7" 460/3 807
EHLT-4848-3-43 48"x48" 3,000 43" 7" 460/3 841
EHLT-4872-3-43 48"x72" 3,000 43" 7" 460/3 950
EHLT-2448-4-43 24"x48" 4,000 43" 7" 460/3 714
EHLT-3060-4-43 30"x60" 4,000 43" 7" 460/3 788
EHLT-4048-4-43 40"x48" 4,000 43" 7" 460/3 878
EHLT-4848-4-43 48"x48" 4,000 43" 7" 460/3 918
EHLT-4872-4-43 48"x72" 4,000 43" 7" 460/3 963



Model Number Format
EHLT - (width)(length) - capacity - raised height

Vertical Travel Platform Width Platform Length Capacity (lbs.) Raised
Height
Lowered Height Travel Time (sec.) Net Weight (lbs.)
36" 24"-48" 48"-72" 1,000 43" 7" 7 638
36" 24"-48" 48"-72" 2,000 43" 7" 11 738
36" 24"-48" 48"-72" 3,000 43" 7" 16 1020
36" 24"-48" 48"-72" 4,000 43" 7" 22 1008
36" 36"-48" 48"-72" 5,000 44" 8" 32 1029
36" 36"-48" 48"-72" 6,000 44" 8" 32 1108
33" 36"-48" 48"-72" *8,000 44" 8" 15 1281
33" 40"-60" 48"-72" *10,000 43" 7" 15 1438
33" 40"-60" 48"-72" *12,000 43" 10" 15 1596
48" 24"-48" 64"-90" 1,000 55" 7" 11 755
48" 24"-48" 64"-90" 2,000 55" 7" 16 1176
48" 24"-48" 64"-90" 3,000 55" 7" 22 2040
48" 36"-48" 64"-96" 4,000 56" 8" 32 1671
48" 36"-48" 64"-96" 5,000 56" 8" 32 1239
48" 36"-48" 64"-96" 6,000 56" 8" 48 1420
45" 36"-48" 64"-96" *8,000 56" 8" 15 1574
45" 40"-60" 64"-96" *10,000 55" 10" 15 1659
45" 40"-60" 64"-96" *12,000 55" 10" 20 1816
60" 24"-48" 84"-108" 1,000 67" 7" 16 1313
60" 24"-48" 84"-108" 2,000 67" 7" 14 891
60" 24"-48" 84"-108" 3,000 67" 7" 16 1197
60" 40"-72" 96"-120" 4,000 68" 8" 26 1848
60" 40"-72" 96"-120" 5,000 68" 8" 26 1869
60" 40"-72" 96"-120" 6,000 70" 10" 30 1890
60" 40"-72" 96"-120" *8,000 70" 10" 30 2131
60" 40"-72" 96"-120" *10,000 72" 12" 30 3498
60" 40"-72" 96"-120" *12,000 72" 12" 30 2446
72" 24"-48" 102"-120" 1,000 79" 7" 12 2047
72" 24"-48" 102"-120" 2,000 79" 7" 16 1885
72" 48"-72" 120"-144" 3,000 82" 11" 26 2089
72" 48"-72" 120"-144" 4,000 82" 11" 26 2110
72" 48"-72" 120"-144" 5,000 82" 11" 26 2131
72" 62"-72" 120"-144" 6,000 82" 12" 30 2152
72" 62"-72" 120"-144" *8,000 82" 12" 30 2415





Please contact Industrial Manlifts for specifications and RFQ's.

 Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377.
