Hydraulic Elevating Carts

Hydraulic Elevating Carts


Hydraulic Elevating Carts Features:

Portable ergonomic elevating carts minimize worker bending and lifting. Material can be easily loaded onto cart from table, lowered to safe transporting height, and raised to unload at destination. Foot pump includes a soft-lowering down valve.  Move easily on four polyurethane casters, two swivel with brakes and two rigid. All models feature an internal hydraulic velocity fuse in each cylinder. Steel or stainless steel construction.


Hydraulic Elevating Carts

Single Scissor Steel Carts

Model PDFs Caster Size & Material Platform Size (WxL) Capacity (lbs) Service Range Foot Pump Speed Wt. (lbs)
CART-400 4” Poly-on-Poly 17-1/2"x27-1/2" 400 8-3/4"to29" Single 134
CART-750-TS 5” Poly-on-Poly 19-3/4"x32 750 15-1/2"to35-1/2" Two 230
CART-1000-TS 5” Poly-on-Poly 19-3/4"x32" 1,000 15-1/2"to35-1/2" Two 221
CART-1000-LD 5” Poly-on-Poly 31-1/2" x 63" 1,000 15"to36" Single 349
CART-1750 5” Poly-on-Steel 20"x39-1/2" 1,750 17"to40" Single 272
CART-2000-WD** 5” Poly-on-Steel 32"x40" 2,000 15"to39" Two Speed Auto Shift 390
CART-2000 5” Poly-on-Steel 20-3/8"x40" 2,000 15"to39" Two Speed Auto Shift 336
CART-4000 6” Poly-on-Steel 24"x47" 4,000 15-1/2"to40" Two 460

Double Scissor Steel Carts

CART-200-D 4” Poly-on-Poly 17-1/2"x27-1/2" 220 10"to51" Single 164
CART-800-D-TS 5” Poly-on-Poly 20"x35-1/2" 800 15-1/2"to51-7/8" Two 275
CART-DS-1000-M** 5” Poly-on-Steel 20-3/8"x33" 1,000 14"to42" Two Speed Auto Shift 318

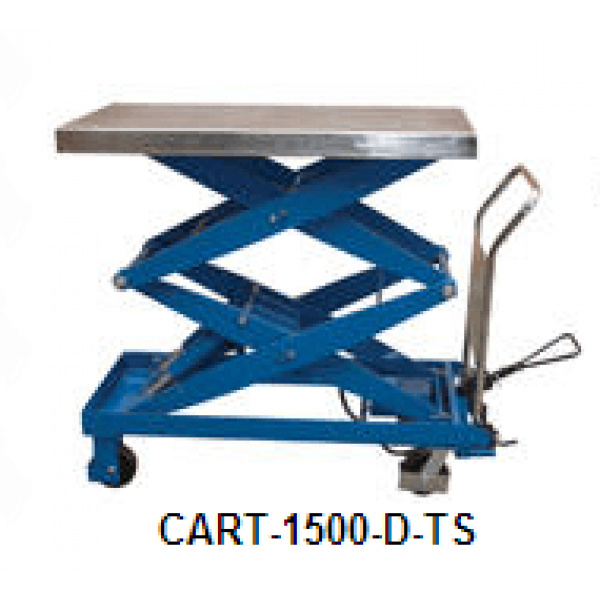

CART-1500-D-TS 6” Poly-on-Steel 24"x47-1/2" 1,500 19"to68" Two 598

Aluminum Scissor Cart

CART-200-ALUM 4” Poly-on-Poly 15-3/4"x27-1/2" 220 8-1/2"to29" Single 102
Model Options for CART-2000, CART-2000-WD & CART-DS-1000-M Only Wt. (lbs)
CART-AC** 24V Hand Held Control, 115V AC Power 48
Hand Held Control, 12V DC Power Option w/ Battery
RECIPR-CART Reciprocating Air/Oil, Carts, 80 PSI & 20 SCFM
BCI** Battery charge indicator gauge 1

Handle is Chrome Plated. Wheels are Poly on Plastic



Please contact Industrial Manlifts for specifications and RFQ's.

 Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (727) 490-8839.
