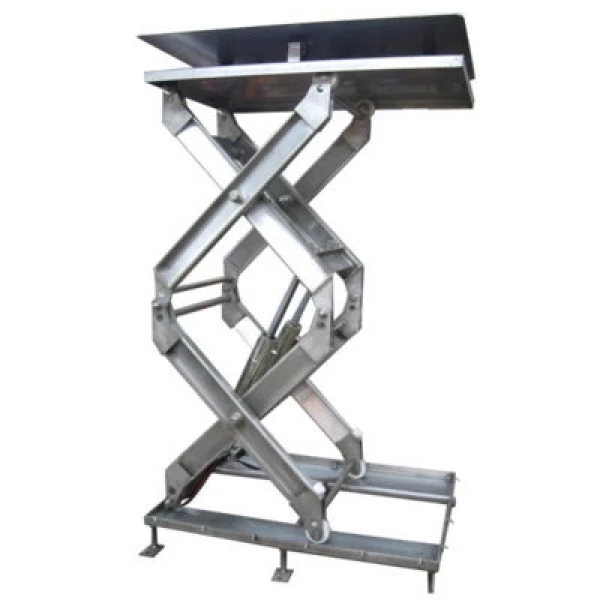

Double Stainless Steel Scissor Lift Tables

Double Stainless Steel Scissor Lift Tables

Double Stainless Steel Scissor Lift Tables Features:

  • Capacities from 500 lbs to 10,000 lbs and lift heights to 144”
  • Tube and non tube units available
  • Delrin rolles and Delrin bushings
  • 100% grade 8 bolts



60" Lift Model Capacity Lowered Height Raised Height
DSL-SS-60-20 2000 10" 70"
DSL-SS-60-40 4000 14" 74"
DSL-SS-60-60 6000 16" 76"
72" Lift Model
DSL-SS-72-20 2000 10" 82"
DSL-SS-72-40 4000 14" 86"
DSL-SS-72-60 6000 16" 88"
84" Lift Model
DSL-SS-96-20 2000 10" 106"
DSL-SS-96-40 4000 14" 110"
DSL-SS-96-60 6000 16" 70"
120" Lift Model
DSL-SS-120-20 2000 14" 134"
DSL-SS-120-40 4000 14" 134"
DSL-SS-120-60 6000 16" 134"
144" Lift Model
DSL-SS-144-20 2000 16" 160"
DSL-SS-144-40 4000 16" 160"
DSL-SS-144-60 6000 18" 162"





Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377.
