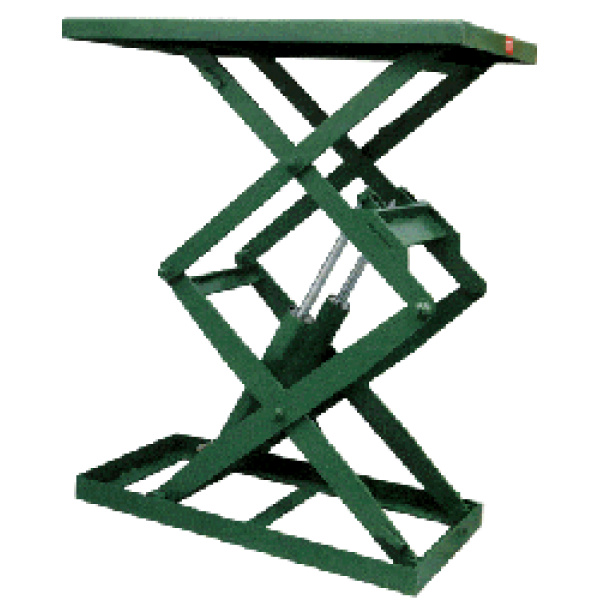

Double Scissors Lift Tables
Double Scissors Lift Tables
500 to 10,000 lb. capacities
Up to 108 in. raised height
Increased lift height at low cost
- These stock tables replace most needs for custom designed equipment.
Durable construction for long, trouble free use
- Heavy-duty, welded steel construction with reinforcing ribs for extra rigidity on larger models.
Available in mechanical screw type operation up to 6,000 pounds!
Double Acting Cylinder Package
- All standard scissor lift tables have hydraulic lift up and gravity lowering. If lowering speed is required, then order optional Double Acting Power System
Lift Table Options:
| Capacity (lbs.) | Table size (in.) | Vertical Travel (in.) | Lowered Height (in.) | Raised Height (in.) | Base size (in.) | Model Number |
| Electric Motor | ||||||
| 500 | 18 x 36* | 36 | 8 | 44 |
14 x 32
|
DSL-51836E |
| 1,000 | 24 x 36* | 32 | 10 | 42 |
18 x 30
|
DSL-12436E |
| 1,000 | 32 x 42* | 36 | 10 | 46 |
26 x 36
|
DSL-13242E |
| 2,000 | 32 x 48* | 48 | 12 | 60 |
26 x 42
|
DSL-23248E |
| 2,000 | 32 x 60* | 68 | 12 | 80 |
26 x 54
|
DSL-23260E |
| 2,000 | 36 x 78 | 96 | 12 | 108 |
30 x 72
|
DSL-23678E |
| 4,000 | 48 x 78 | 96 | 12 | 108 |
42 x 72
|
DSL-44878E |
| 6,000 | 32 x 60 | 70 | 12 | 82 |
26 x 54
|
DSL-63260E |
| 6,000 | 48 x 78 | 96 | 12 | 108 |
42 x 72
|
DSL-64878E |
| 6,000 | 72 x 102 | 94 | 16 | 110 |
66 x 96
|
DSL-672102E |
| 10,000 | 48 x 78 | 92 | 16 | 108 |
42 x 72
|
DSL-104878E |
| 10,000 | 72 x 102 | 94 | 16 | 110 |
66 x 96
|
DSL-1072102E |
| NOTE: Manual, battery, air, & gas powered units also available | ||||||
Industrial Manlifts is YOUR total aerial access solution provider. We can customize any aerial access solution for any project. Operators standing by, (888) 730-8377.
