Genie Telescopic Boom Lifts


May 2, 2012 Facebook Twitter LinkedIn Google+ News

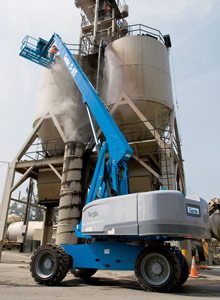

S85 Genie Telescoping Boom Lifts

Genie Telescopic Boom Lifts

The Genie Telescopic Boom Lifts offer greater horizontal outreach than any other type of aerial platform — perfect for areas with limited access in construction and industrial applications. Genie® telescopic  S™-booms are also designed for productivity with the traction and drive speed you need to get around the job site and to the work area.



  • Ideal for areas with limited access in construction and industrial applications
  • Minimal tailswing for maneuvering in tight spaces
  • Dual-fuel (gas or LPG) options available for indoor/outdoor applications
  • Designed for productivity with the traction and drive speed you need
  • Super Boom models with horizontal outreach among the industry’s best
ProductWorking Height*Horizontal ReachLift Capacity
S™-40 & S™-4546 ft (14.20 m)
51 ft (15.72 m)
31 ft 8 in (9.65 m)
36 ft 8 in (11.18 m)
500 lbs (227 kg)
S™-40 Trax & S™-45 Trax46 ft (14 m)
51 ft (15.5 m)
31 ft 8 in (9.7 m)
36 ft 8 in (11.2 m)
500 lb (227 kg)
S™-60X & S™-6566 ft 2 in (20.34 m)
71 ft (21.80 m)
50 ft 10 in (15.48 m)
56 ft 2 in (17.10 m)
500/1000 lbs**
(227/454 kg)**
500 lbs (227 kg)
S™-60 Trax & S™-65 Trax66 ft 2 in (20.34 m)
71 ft 2 in (21.86 m)
50 ft 10 in (15.48 m)
56 ft 2 in (17.10 m)
660/1100 lbs
(299/499 kg)**
500 lbs (227 kg)**
S™-80X & S™-8586 ft (26.20 m)
91 ft (27.70 m)
71 ft 6 in (21.80 m)
76 ft 6 in (23.30 m)
500/1000 lbs**
(227/454 kg)**
500 lbs (227 kg)
S™-105111 ft (34.00 m)80 ft (24.38 m)500 lbs (227 kg)
S™-125131 ft 2 in (40.15 m)80 ft (24.38 m)500 lbs (227 kg)

* Imperial measurements of working height add 6 ft to platform height. The metric equivalent adds 2 m to platform height.
** Maximum outreach zone / maximum capacity zone.

Designed to the strict guidelines of the American National Standards Institute (ANSI) and the regulations of the Occupational Safety & Health Administration (OSHA). Ships anywhere in the United States and Internationally. Industrial Man Lifts is an aerial work platform and aerial access solution provider. We can customize any aerial access solution to fit your needs. For more information or to order, (888) 730-8377.
