Truck Mounted Scissor Lift

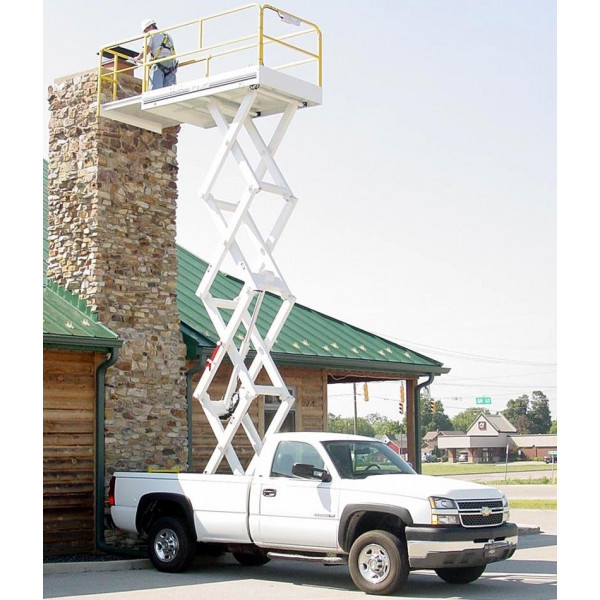

The Truck Mounted Scissor Lift is a pickup truck mounted scissor lift. The unit offers a rear extension platform and the unit offers a quick disconnect system from the truck. The unit is powered by a 12 Volt battery that is re-charged from the trucks electrical system. Truck Mounted Scissor Lift Specifications:
Model IML-001TL
Maximum platform height 21'10" 6.65m
Minimum platform height 63" 160 cm
Capacity 500 lbs. 226 kg.
Unit weight 2,100 lbs. 952 kg.
Overall shut height 8'6" 2.59m
Platform size 54" x 88" 137 cm x 223 cm
Overall length 7'5" 2.26m
Overall width 4'6" 1.37m
GVW Requirement 8,800 lbs. 3991 kg.
  Truck Mounted Scissor Lift Features:
  • 3' Rear Roll-Out Extenda-Deck
  • No Stabilizers Required
  • Quick Disconnect System For Easy Removal
  • Unit Recharges from Trucks Electrical System
  • 4 Degree Tilt Cut out
  • Fork Pockets
Truck Mounted Scissor Lift Options:
  • Short Bed Installation Package
  • Removable Guardrails
Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377
