Description

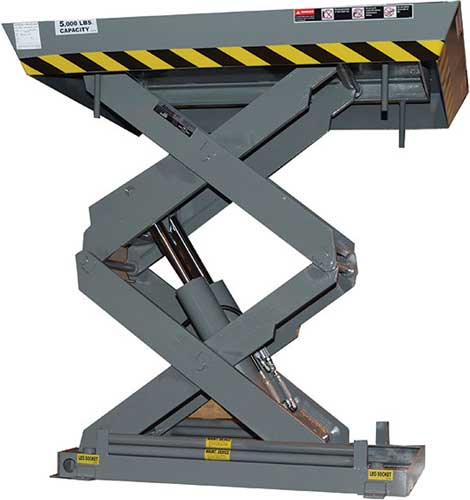

TorkLift T3 Heavy Duty Scissors Lifts
Durability and Quality
- All scissors rollers are captured within structural steel channels to provide excellent load stability
- High impact, spiral wound bearings at every pivot point provide maintenance-free, rugged resistance to abrasion, impact, and uneven loads.
- Structural cross-members at every pinned joint in the scissors assembly minimizes leg deflection due to twisting or spreading under high/uneven loading.
- All hydraulic cylinders contain two-piece, self-aligning piston rods that transmit minimal side forces to the cylinder hinges/pins, significantly reducing wear.
- Structural steel channels in all top and lower frames provide additional rigidity and resistance to twisting/bending of the lift under load.
- Solid steel legs and added stiffeners provide overall stability and straight, repeatable roller tracking as the lift raises and lowers.
- Joints, the most critical wear points in the lift, feature chrome-plated, 100,000 psi, ultimate-strength pins for premium load strength and long life.
- Minimum 1/4-inch-thick steel-reinforced platform minimizes deck deflection, maximizes load stability, and greatly extends the life of the platform deck.
Maintenance and Warranty
- IML offers an industry-best 2 year warranty on all parts as a promise that you’ve purchased the industry’s most reliable scissor lift.
- On-board maintenance devices enable maintenance crews to safely and effectively block open the scissors during inspection and routine maintenance.
- Sturdy, semi-transparent polyurethane oil reservoir provides an easily visible method of checking fluid levels and eliminates oil contamination due to rust.
- Low pressure hydraulic circuit extends the life of all hydraulic components and puts less stress on the electric motor.
- Double wire braided Parker hydraulic hoses resist wear, abrasion, and leaks.
Simplicity
- Small footprint allows workers to stand closer to the product, minimizing the amount of floor space required for vertical travel.
- Standard controls are prewired to a remote power unit. Installation simply includes lagging the unit to the ground and connecting to electricity.
Safety
- Hydraulic velocity fuses completely stop lifts in the unlikely event of uncontrolled descent due to sudden hose rupture.
- Minimum 3:1 structural factor of safety makes these lifts the most structurally sound lift in the industry.
- Compliance with recognized standards:
- ANSI MH29.1 – Safety Requirements for Industrial Scissor Lifts
- NFPA 70 – National Electric Code
- ASTM – A36 – Structural Steel Standard
- ANSI Z535 – Safety Labeling Requirements
- AWS D.1 – Welding Standards
- Applicable portions of OSHA 29CFR1910 – General workplace safety
TorkLift T3 Heavy Duty Scissors Lifts Features:
| Model |
Travel (inches) |
Capacity (lbs#) |
Lowered Height (inches) |
Raised Height (inches) |
Base Frame Width |
Base Frame Length |
Maximum Platform Width |
Maximum Platform Length |
Shipping Weight Approx# (lbs#) |
| T3-048-040 |
48 |
4000 |
16.5 |
64.5 |
32 |
33 |
56 |
57 |
2725 |
| T3-048-060 |
48 |
6000 |
19 |
67 |
34 |
34 |
58 |
58 |
2775 |
| T3-060-020 |
60 |
2000 |
15.75 |
75.75 |
24 |
38.875 |
48 |
62.875 |
2695 |
| T3-060-040 |
60 |
4000 |
17.0625 |
77.0625 |
32 |
39 |
56 |
63 |
2875 |
| T3-060-060 |
60 |
6000 |
17.0625 |
77.0625 |
32 |
39 |
56 |
63 |
2950 |
| T3-072-020 |
72 |
2000 |
15.75 |
87.75 |
30 |
44 |
54 |
68 |
2775 |
| T3-072-040 |
72 |
4000 |
17.5625 |
89.5625 |
34 |
45 |
58 |
69 |
3050 |
| T3-072-060 |
72 |
6000 |
18.4375 |
90.4375 |
32 |
45 |
56 |
69 |
3195 |
| T3-084-020 |
84 |
2000 |
17.0625 |
101.0625 |
32 |
51 |
56 |
75 |
2950 |
| T3-084-040 |
84 |
4000 |
19.5625 |
103.5625 |
40 |
58 |
64 |
82 |
3075 |
| T3-084-060 |
84 |
6000 |
22 |
106 |
36 |
54 |
60 |
75 |
3395 |
| T3-096-020 |
96 |
2000 |
17.0625 |
113.0625 |
38 |
56 |
62 |
80 |
3150 |
| T3-096-040 |
96 |
4000 |
20.5625 |
116.5625 |
40 |
58 |
64 |
82 |
3595 |
| T3-096-060 |
96 |
6000 |
21.25 |
117.25 |
46 |
59 |
70 |
83 |
3675 |
| T3-108-020 |
108 |
2000 |
18.625 |
126.625 |
42 |
63 |
66 |
87 |
3150 |
| T3-108-040 |
108 |
4000 |
22 |
130 |
48 |
64 |
72 |
88 |
3595 |
| T3-108-060 |
108 |
6000 |
23.5 |
131.5 |
54 |
65 |
78 |
89 |
3675 |
| T3-120-020 |
120 |
2000 |
18.5625 |
138.5625 |
48 |
69 |
72 |
93 |
3475 |
| T3-120-040 |
120 |
4000 |
22.5625 |
142.5625 |
48 |
70 |
72 |
94 |
3875 |
| T3-120-060 |
120 |
6000 |
22.5625 |
142.5625 |
56 |
70 |
80 |
94 |
3975 |
| T3-132-020 |
132 |
2000 |
22 |
154 |
54 |
75 |
78 |
99 |
3825 |
| T3-132-040 |
132 |
4000 |
25.0625 |
157.0625 |
56 |
77 |
80 |
101 |
3050 |
| T3-132-060 |
132 |
6000 |
25.0625 |
157.0625 |
56 |
77 |
80 |
101 |
3175 |
| T3-144-020 |
144 |
2000 |
22.5625 |
166.5625 |
56 |
81 |
80 |
105 |
3950 |
| T3-144-040 |
144 |
4000 |
22.5625 |
166.5625 |
56 |
81 |
80 |
105 |
4200 |
| T3-144-060 |
144 |
6000 |
25.75 |
169.75 |
48 |
82 |
72 |
106 |
4450 |
Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (727) 490-8839.
