Description

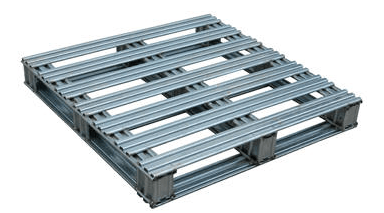

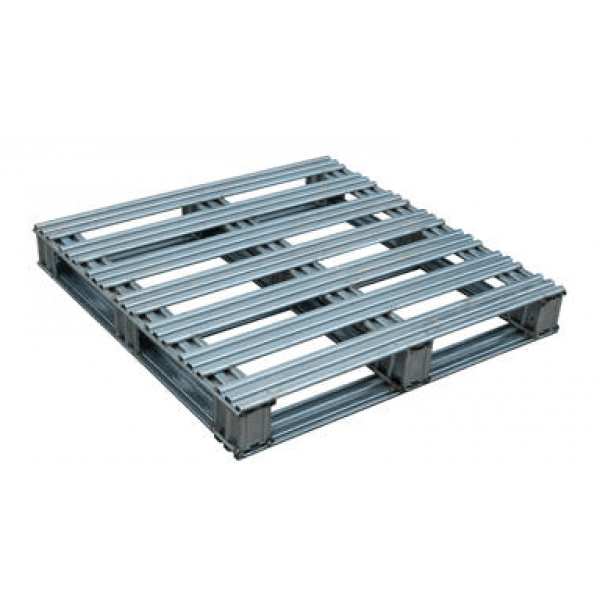

 Steel Pallets with Galvanized Finish



 Steel Pallets with Galvanized Finish Features:

Heavy-duty non-reversible welded steel pallets. Usable fork openings are 3.9″ high.  Model SPL-3636 has 4-way entry allowing for access for both fork and pallet trucks.  Models SPL-4048, SPL-4248 and SPL-4848 have 2-way entry and allow access for fork trucks only. Galvanized finish is used for rust resistance.



Galvanized Steel Pallets
Model	PDF	Width	Length	Height	Uniform Supported Weight Capacity			Bottom Deck Stringers	Wt. (lbs)
					Floor (Static)	Fork (Dynamic)	Unsupported Pallet Rack
SPL-3636		36″	36″	4-3/4″	8,000 lbs.	4,000 lbs.	2,200 lbs.	3	80
SPL-4048		40″	48″	4-3/4″	8,000 lbs.	4,000 lbs.	2,200 lbs.	5	100
SPL-4248		42″	48″	4-3/4″	8,000 lbs.	4,000 lbs.	2,200 lbs.	5	103
SPL-4848		48″	48″	4-3/4″	8,000 lbs.	4,000 lbs.	2,200 lbs.	5	114







Please contact Industrial Manlifts for specifications and RFQ’s.

 Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (727) 490-8839.
