Description

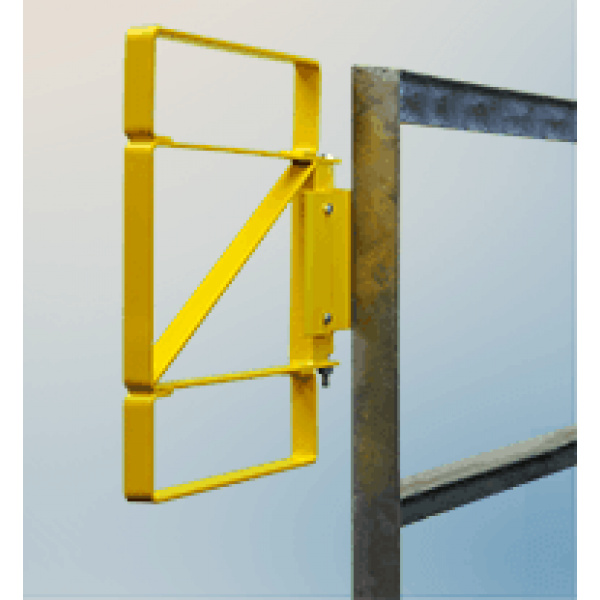

Safety Gates – Z Series



Safety Gates – Z Series Features:

The Z Series self-closing steel safety gate can be used effectively as a new construction gate or as a platform gate.

• Easy to Install
• Stainless Steel Spring
• Positive Stop
• Variety of IML Finishes
• Pipe Post Adapter

Carbon Steel Galvanized

Model No.      Fits Clear Opening*      Estimated Weight

​

   Z70-21                 21-24’’                         33 lbs.

   Z70-24                 24-27’’                         35 lbs.

   Z70-27                 27-30’’                         35 lbs.

   Z70-30                 30-33’’                         37 lbs.

   Z70-33                 33-36’’                         37 lbs.

   Z70-36                 36-39’’                         37 lbs.

Carbon Steel with Safety Yellow Powder Coat

Model No.      Fits Clear Opening*      Estimated Weight

​

   Z70-21PC             21-24’’                         33 lbs.

   Z70-24PC             24-27’’                         35 lbs.

   Z70-27PC             27-30’’                         35 lbs.

   Z70-30PC             30-33’’                         37 lbs.

   Z70-33PC            33-36’’                         37 lbs.

   Z70-36PC             36-39’’                         37 lbs.

*No adjustment when mounting at right angle; 1/4” inch allowed for pivot point





Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (727) 490-8839
