Portable Container Tilters PT-40

Description

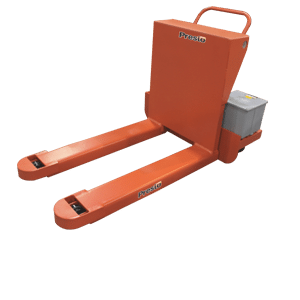

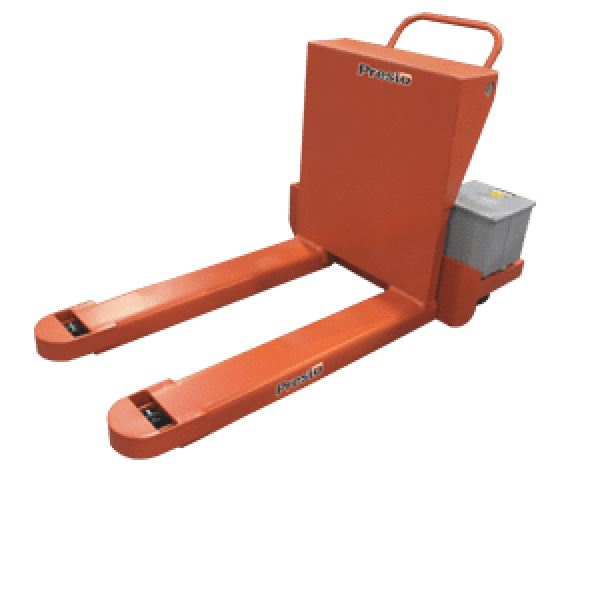

Portable Container Tilters PT-40

Portable Container Tilters PT-40 Features:



These portable, battery powered container tilters go anywhere they are needed. Choose them for applications that require sharing between multiple users or work cells, or where workers need to pick up and return containers to and from staging areas. Choose a Non-Straddle unit for use with most standard containers or a Straddle unit for use with containers that have reinforcing leg bars.

Available in 2,000 or 4,000 lb. capacities. All PT and PTS Container Tilters can tilt containers to any angle between 0˚ and 85˚.



Model Number	Tilt Capacity	Low Height	Degree of Tilt	Dimensions W x L	Fork Length	Fork O.D.	Lifting Speed	Shipping Weight
PT Series – Non-Straddle
PT-20	2000 lbs	3 ½”	85°	34 x 54″	40″	24 ½”	37 sec	700 lbs
PT-40	4000 lbs	3 ½”	85°	34 x 61″	40″	26 ⅛”	30 sec	900 lbs
PTS Series – 50″ I.D. Straddle
PTS50-20	2000 lbs	3 ½”	85°	57 x 54″	40″	24″	37 sec	950 lbs
PTS50-40	4000 lbs	3 ½”	85°	57 x 58″	40″	25″	30 sec	1150 lbs
