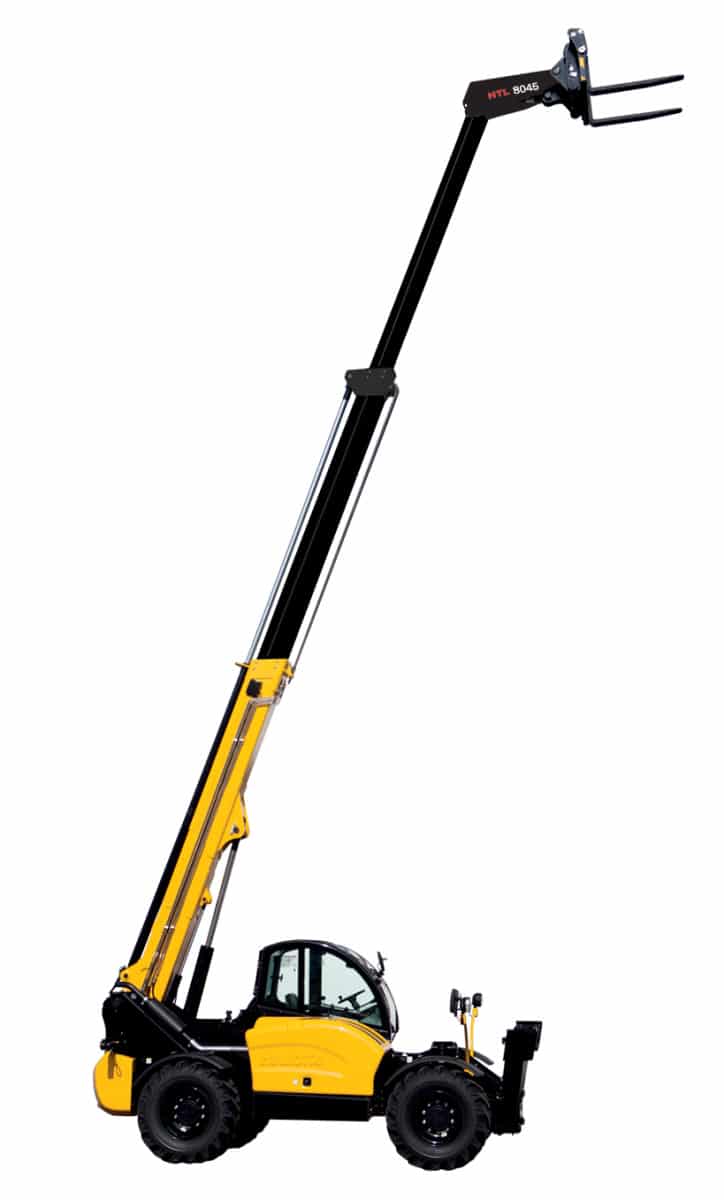

HTL8045 TIERIII Telescopic Telehandler

Rated 4.5/5 based on 1reviews

HTL8045 TIERIII Telescopic Telehandler comes with a gear equipment pump. Industrial Manlifts (888)730-8377

HTL8045 TIERIII Telescopic Telehandler



HTL8045 TIERIII Telescopic Telehandler Features:



  • Smart control 4-in-1 joystick
  • High safety cab
  • LMI easy to read including automatic cut off of dangerous movements
  • Adaptability and performance
  • Optimised load rating
  • Hydraulic control for standard accessories
  • Tilt corrector as standard
  • Power and precision
  • Standard hydrostatic transmission
  • Simultaneous and proportional controls of all 4 movements of the boom with flow sharing
  • Safety and reliability
  • Standard rear axle locking
  • Dangerous movements cut out switch



TECHNICAL DATA

Approach angle29 °
Lower rotation of forks104 °
Upper rotation of forks18 °
Lift capacity to full height6615 lbs
Lift capacity at full reach1764 lbs
Maximum lift capacity7938 lbs
Tilt corrector10 °
Engine capacity268.4 in3
Maximum distance between forks51.1 in
Wheelbase9 ft 6 in
Ground clearance19.7 in
Overall height – stabilizers down8 ft 11 in
Height to high boom pivot5 ft 9 in
Height8 ft 6 in
Maximum fork height44 ft 7 in
Maximum fork height – stabilizers down8 ft 11 in
Engine oil1.85 gal
Overall width – stabilizers down11 ft 0 in
Cab width3 ft 2 in
Width8 ft 0 in
Length21 ft 1 in
Engine modelPERKINS TIER III
Maximum gradient45 %
Weight with forks22800 lbs
Reach at maximum fork height4 ft 1 in
Maximum forward reach32 ft 2 in
Engine power output70kW @ 2300rpm
Turning radius at the tip of the forks20 ft 6 in
Outside turning radius14 ft 9 in
Inside turning radius8 ft 2 in
Coolant4.7 gal
Fuel tank34.3 gal
Tires type16/70 – 24
Speed in traveling mode18.6 mph
Speed in working mode5 mph
Track width6 ft 7 in
Engine torque392Nm @ 1400rpm

STANDARD EQUIPMENT

  • 4 wheel drive and steer
  • Fuel filter with water separator
  • Safety valves on hydraulic jacks
  • Hydrostatic transmission with variable capacity pump and engine
  • Gear equipment pump
  • Flow-Sharing electrically controlled controls
  • Tilt corrector: ±10°
  • Possibility to combine mast/telescopic boom/excavation and accessories movements
  • Hydraulic rear axle locking
  • Back-lit e-tronic dashboard

MAIN OPTIONS

  • Cold Weather Package
  • Biodegradable oil
  • Cold environment oil
  • Hot environment oil
  • Air conditioning
  • Working lights
  • 4-in-1 bucket and standard bucket
  • Forks
  • Winches
  • Jib attachment and winch
  • Metal windscreen protector (FOPS)
