Description

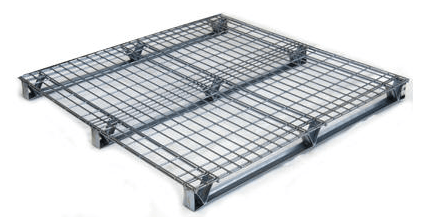

Galvanized Welded Wire Pallets

Galvanized Welded Wire Pallets Features:

Welded wire pallets will stand up to heavy-duty use. Design allows for stacking. Four-way access with pallet truck and fork trucks. Open decking features 2″ x 4″ grid pattern. Usable height on open end is 3″. Usable eight on stringer end is 2¾”. Understructure supports are made from 12 gauge steel. Decking is made from welded steel wire. Welded steel construction with galvanized finish.



Galvanized Welded Wire Pallets
Model	PDF	Overall Size (WxDxH)	Uniform Supported Weight Capacity			Wt. (lbs)
			Floor (Static)	Fork (Dynamic)	Unsupported Pallet Rack
WMP-4048		40″x48″x4	4,000	2,500	0	47
WMP-4848		48″x48″x4″	4,000	2,500	0	54





Please contact Industrial Manlifts for specifications and RFQ’s.

 Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (727) 490-8839.
