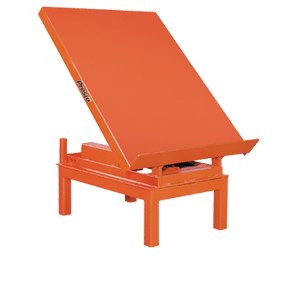

Fixed Height Tilters TT45-20

These fixed height tilters can be mounted on legs, workbenches or directly on the floor. Industrial Manlifts (888)730-8377

Fixed Height Tilters TT45-20



Fixed Height Tilters TT45-20 Features:



These fixed height tilters can be mounted on legs, workbenches or directly on the floor. They are ideal for odd shaped or sized containers or odd loads. They are also useful for positioning items for wiring, assembly and fabricating applications.

TT Series Fixed Height Tilters are available with 30˚, 45˚ or 60˚ of tilt and can handle loads up to 6,000 lbs.

Model
Number
Tilt
Capacity
Low
Height
Degree
of Tilt
Standard
Base
Standard
Platform
Maximum
Platform
Lifting
Speed
Shipping
Weight
TT30 Series
TT30-10 1000 lbs 6 ½" 30° 24 x 30" 24 x 36" 36 x 48" 15 sec 310 lbs
TT30-15 1500 lbs 6 ½" 30° 24 x 30" 24 x 36" 36 x 48" 15 sec 325 lbs
TT30-20 2000 lbs 7 ½" 30° 24 x 36" 24 x 36" 50 x 50" 10 sec 530 lbs
TT30-40 4000 lbs 7 ½" 30° 24 x 36" 24 x 36" 50 x 50" 11 sec 520 lbs
TT30-60 6000 lbs 7 ½" 30° 24 x 36" 24 x 36" 50 x 50" 14 sec 530 lbs
TT45 Series
TT45-10 1000 lbs 6 ½" 45° 24 x 30" 24 x 36" 36 x 48" 22 sec 310 lbs
TT45-15 1500 lbs 6 ½" 45° 24 x 30" 24 x 36" 36 x 48" 22 sec 325 lbs
TT45-20 2000 lbs 7 ½" 45° 24 x 36" 24 x 36" 50 x 50" 15 sec 510 lbs
TT45-40 4000 lbs 7 ½" 45° 24 x 36" 24 x 36" 50 x 50" 16 sec 520 lbs
TT45-60 6000 lbs 7 ½" 45° 24 x 36" 24 x 36" 50 x 50" 20 sec 530 lbs
TT60 Series
TT60-10 1000 lbs 6 ½" 60° 24 x 30" 24 x 36" 36 x 48" 30 sec 310 lbs
TT60-15 1500 lbs 6 ½" 60° 24 x 30" 24 x 36" 36 x 48" 50 sec 325 lbs

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377.
