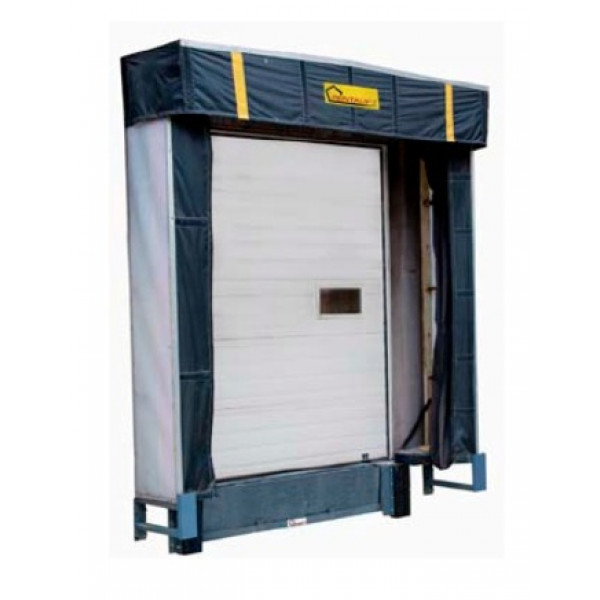

  Dock Seal/Shelter Combinations Features:   For use with an 8'W x 10'H door. Top (header) is constructed of wolmanized lumber and is built with a slope to allow for water run-off. Header measures 114"W with a 30" drop curtain. Side (verticals) measure 120" tall and contain high density foam mounted to treated lumber. Once mounted, the face of the vertical will measure 12"W and will taper to 9-1⁄2" at wall. Verticals are mounted on wooden 2" x 12" to allowing wall mounting down the length of the vertical pieces. Applications with a flush dock to building in conjunction with an Edge-O-Dock use a 20" projection Dock Seal. Units are non-returnable.
Self Dumping Hoppers with Bumper Release
Model Number Volume Capacity Overall Fork Wt.
Cubic Yards (lbs) (WxLxH) Pocket Centers (lbs)
Light Duty-12 Gauge Steel
D-25-LD 43104.00 2,000 26"x51-7/8"x38" 18" 335
D-33-LD 43103.00 2,000 26"x51-7/8"x38" 18" 340
D-50-LD 43102.00 2,000 33-11/16"x51-3/4"x38" 18" 365
D-75-LD 43163.00 2,000 31-11/16"x 61-1/8x 42-11/16" 18" 449
D-100-LD 1.00 2,000 41-11/16"x 61-1/8"x 42-11/16" 18" 479
D-150-LD 37257.00 2,000 43-11/16"x 68-5/16"x 51-13/16" 28" 565
D-200-LD 2.00 2,000 56-11/16"x 68-5/16"x 51-13/16" 28" 613
D-250-LD 37288.00 2,000 69-9/16"x 68-3/8"x 51-3/4" 28" 863
D-300-LD 3.00 2,000 81-3/4"x 68-5/8" x 51-13/16" 28" 940
Medium Duty-10 Gauge Steel
D-25-MD 43104.00 4,000 26"x51-7/8"x38-1/16" 18" 397
D-33-MD 43103.00 4,000 26"x 51-7/8"x 38-1/16" 18" 397
D-50-MD 43102.00 4,000 33-9/16"x51-7/8"x38-1/16" 18" 435
D-75-MD 43163.00 4,000 31-9/16"x 61-1/8"x 42-3/4" 18" 543
D-100-MD 1.00 4,000 41-1/2"x 61-1/8"x42-11/16" 18" 534
D-150-MD 37257.00 4,000 43-9/16"x 68-3/8"x51-13/16" 28" 714
D-200-MD 2.00 4,000 56-5/8"x 68-5/16"x51-13/16" 28" 701
D-250-MD 37288.00 4,000 69-9/16"x 68-3/8"x 51-3/4" 28" 863
D-300-MD 3.00 4,000 81-3/4"x 68-5/8"x 51-13/16" 28" 940
Heavy Duty-8 Gauge Steel
D-25-HD 43104.00 6,000 26"x 51-7/8"x 38-1/16" 18" 397
D-33-HD 43103.00 6,000 26"x51-7/8"x 38-1/16" 18" 397
D-50-HD 43102.00 6,000 33-9/16"x 51-7/8"x 38-1/16" 18" 435
D-75-HD 43163.00 6,000 31-9/16"x 61-1/8"x 42-3/4" 18" 543
D-100-HD 1.00 6,000 41-9/16"x 61-1/8"x 42-3/4" 18" 590
D-150-HD 37257.00 6,000 43-9/16"x 68-3/8"x 51-13/16" 28" 714
D-200-HD 2.00 6,000 56-9/16"x 68-5/16"x 51-13/16" 28" 789
D-250-HD 37288.00 6,000 69-9/16"x 68-3/8"x 51-3/4" 28" 863
D-300-HD 3.00 6,000 81-3/4"x 68-5/8"x 51-13/16" 28" 940
D-300-HD-NA 3.00 6,000 55-9/16"x 79-3/8"x 64-3/8" 28" 1107
D-350-HD 37316.00 6,000 64-1/4"x 79-3/8"x 64-3/8" 28" 1128
D-400-HD 4.00 6,000 72-15/16"x 79-3/8"x 64-3/8" 28" 1128
D-500-HD 5.00 6,000 90-1/4"x79-3/8"x 64-3/8" 28" 1254
Dock Shelters

Model Number

PDF

Projection

Overall Height

Overall Width

Door Opening

Weight lbs.
D-750-18 -- 18" 126" 132" 10'x10' 418
D-750-24 -- 24" 126" 132" 10'x10' 478
D-750-30 -- 30" 126" 132" 10'x10' 518
D-750-36 -- 36" 126" 132" 10'x10' 563
Dock Seal/Shelter Combination

Model Number

Projection

Overall Height

Overall Width

Door Openings

Weight lbs.
D-150/650-10 10" 126" 114" 8' X 10' 271
D-150/650-11 11" 126" 114" 8' X 10' 278
D-150/650-12 12" 126" 114" 8' X 10' 285
D-150/650-13 13" 126" 114" 8' X 10' 287
D-150/650-14 14" 126" 114" 8' X 10' 290
D-150/650-15 15" 126" 114" 8' X 10' 293
D-150/650-16 16" 126" 114" 8' X 10' 296
D-150/650-17 17" 126" 114" 8' X 10' 298
D-150/650-18 18" 126" 114" 8' X 10' 299
D-150/650-19 19" 126" 114" 8' X 10' 302
D-150/650-20 20" 126" 114" 8' X 10' 3 05

Dock Shelter Options

Model Number

Description
D-FHPFS Full height pleats, full height guide stripes
D-FHPS Full height pleats, standard guide (24" high)
D-AP Armor pleats, top 24" only
D-54OZ 54 ounce material - face only
D-18H 18" header
D-SV Sloped verticals
D-BBF Bottom Bun
D-BBFB Bottom bun with bumpers
D-GS Full height guide stripes
D-12F 12" flap
D-SIDE Dock seal sides between 97" and 120"
D-KIT Repair kit.  Includes: (2-Pcs.Of 18oz Vinyl 12"x36"; 2-Pcs Of 18oz Vinyl 12"x24"; 2-Pcs.Of 18oz Vinyl 12"x12"; 1 Can Of Glue)
