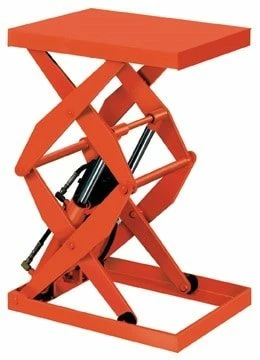

Compact Scissor Lift Table

Compact Scissor Lift Table

The DXS Series Compact Scissor Lift Tables feature a double scissor mechanism with a 6-inch collapsed height and 42-inch raised height, offering a 2,000 lb lifting capacity. Standard features include an 18 x 30 platform and a 1/3 HP motor. Customization options such as casters and special platforms are available.

SKU 5990 Categories , , , Tags , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

DXS Series Compact Scissor Lift Tables: Efficient Lifting in a Compact Design

The DXS Series Compact Scissor Lift Tables from Industrial Manlifts provide the ideal solution for industrial applications requiring a powerful yet space-saving lifting system. Featuring a double scissor mechanism, these compact lift tables offer a collapsed height of 6 inches and can extend up to 42 inches for optimal reach.

Key Features:

  • Double Scissor Mechanism: Offers a low collapsed height of 6 inches and a raised height of 42 inches, maximizing lift capability in tight spaces.
  • Lifting Capacity: Supports up to 2,000 lbs, making it ideal for various material handling tasks.
  • Efficient Operation: The lift is powered by a 1/3 HP motor, operated via a convenient foot switch and runs on 115/1/60 power.
  • Standard Platform Size: Comes with an 18 x 30-inch platform, with other platform sizes, including oversized tops, available to meet specific requirements.
  • Customization Options: Enhance functionality with a variety of accessories and options, such as casters, push button controls, special platforms, bellows guards, limit switches, and more.



Model Lift Lowered Raised Standard Maximum Rise Standard Std Voltage/ Phase/Hz Shipping
Number Capacity Height Height Platform Platform Time Motor Weight
(W x L) (W x L)
DXS30 Series  30″ Travel
DXS30-5 500 lbs 6-3/4″ 36-3/4″ 16 x 24″ 30 x 36″ 16 sec 1/3 HP 115/1/60 350 lbs
DXS30-10 1000 lbs 6-3/4″ 36-3/4″ 16 x 24″ 30 x 36″ 18 sec 1/3 HP 115/1/60 350 lbs
DXS36 Series  36″ Travel
DXS36-10 1000 lbs 7-1/2″ 43-1/2″ 24 x 36″ 36 x 48″ 40 sec 1/2 HP 115/1/60 460 lbs
DXS36-15 1500 lbs 7-1/2″ 43-1/2″ 24 x 36″ 36 x 48″ 42 sec 1/2 HP 115/1/60 480 lbs
DXS36-20 2000 lbs 6″ 44-1/4″ 18 x 42″ * 36 x 54″ 40 sec 1/2 HP 115/1/60 550 lbs
DXS48 Series — 48€Travel
DXS48-10 1000 lbs 7-1/2″ 55-1/2″ 24 x 48″ 36 x 60″ 50 sec 1/2 HP 115/1/60 600 lbs
DXS48-15 1500 lbs 7-1/2″ 55-1/2″ 24 x 48″ 36 x 60″ 54 sec 1/2 HP 115/1/60 650 lbs
DXS48-20 2000 lbs 9-1/2″ 57-1/2″ 24 x 40″ 36 x 54″ 42 sec 1 HP 115/1/60 800 lbs
DXS48-40 4000 lbs 12″ 60″ 30 x 42″ 48 x 60″ 16 sec 3 HP 230, 460/3/60 1250 lbs
DXS60 Series  60″ Travel
DXS60-20 2000 lbs 12-1/2″ 76-1/2″ 24 x 53″ 42 x 66″ 16 sec 3 HP 230, 460/3/60 1100 lbs
DXS60-40 4000 lbs 14″ 74″ 30 x 53″ 48 x 66″ 30 sec 3 HP 230, 460/3/60 1800 lbs
DXS72 Series  72″ Travel
DXS72-20 2000 lbs 12-1/2″ 84-1/2″ 24 x 53″ 36 x 66″ 92 sec 1 HP 230, 460/3/60 1250 lbs
DXS72-40 4000 lbs 14″ 86″ 32 x 57″ 54 x 72″ 36 sec 3 HP 230, 460/3/60 2000 lbs

Compact, powerful, and customizable, the DXS Series Compact Scissor Lift Tables are designed for safe and efficient lifting in industrial environments, providing the flexibility you need to optimize your workspace.

* DXS36-20 is available with a minimum base/platform size of 18″ x 32″ (requires optional remote power unit)
