Cantilever Carts

Cantilever Carts

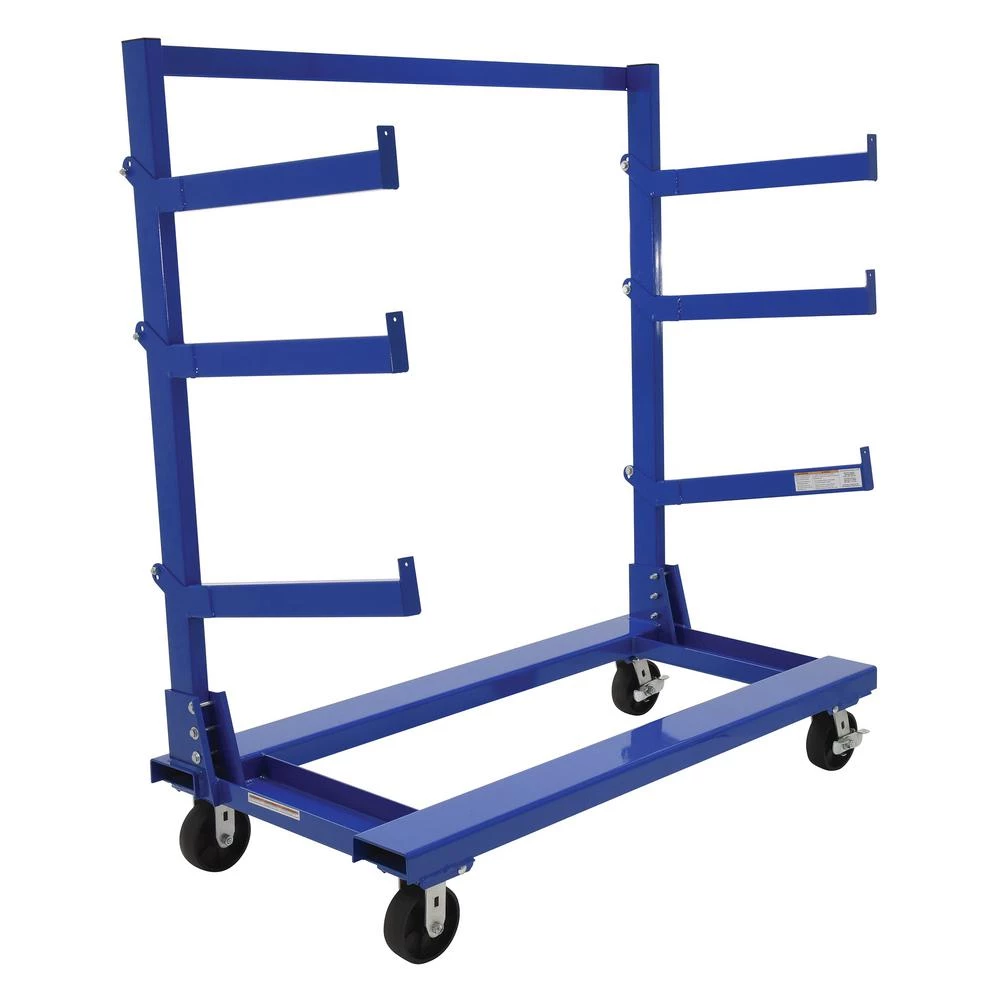

Cantilever Carts Features:

Portable Cantilever Carts for storage of bar stock type items. Each cart includes three pairs of arms. Arm height is adjustable in 6" increments. Arms are secured to cart with a bolt and nut.

Height of lowest arm position is 9-3/8" while the highest position is 51-1/4". The 8" high base includes built in fork pockets that are 5½"W x 2"H. Units roll on (2) rigid and (2) locking swivel 6" x 2" casters. All steel construction with blue powder-coat finish.

Cantilever Carts
Model Overall Size Usable Uniform Load Capacity Per Wt.
(WxLxH) Arm Length Capacity (lbs) Level (lbs) (lbs)
CANT-3048 30"x 48-9/16"x 64-11/16" 24" 2,000 400 212
CANT-3648 36"x 48-9/16"x 64-11/16" 30" 2,000 400 226
CANT-3060 30"x 60-9/16"x 64-11/16" 24" 2,000 400 225
CANT-A30 Extra pair of 30"L (24" usable) arms 12
CANT-A36 Extra pair of 36"L (30" usable) arms 14

Industrial Manlifts is your aerial access solution provider. If you do not see the size you need, please contact one of our technical sales reps at 727-490-8839 for assistance. We can customize.
