Bicycle Racks Features:
Our Bike Racks make it easy to store bikes where space is at a premium. Welded steel units feature mounting flanges pre-drilled with 7/16″ diameter holes for easy mounting (hardware sold separately).
Racks are shipped fully-assembled and ready to use. Standard in a galvanized finish (model BR-GL-G only) or black powder coat finish (all other models). Other powder coat finishes are available at an additional cost. Please contact factory.
| Bicycle Rack | |||||||
| Model | PDF’s | Bike Capacity | Mounting Style |
Mounting Hole Diameter | Mounting Holes |
Overall Size |
Wt. (lbs) |
| Black Powder Coat Finish | |||||||
| BR-L2-BK | 5 | Ground | 7/16″ | 8 | 4″ W x 31″L x 36″H | 25 | |
| BR-L3-BK | 7 | Ground | 7/16″ | 8 | 4″W x 49″Lx36″H | 36 | |
| BR-ST-BK | 2 | Ground | 7/16″ | 8 | 20″L x 38-5/16″W x 26-1/2″H | 31 | |
| BR-M3S-BK | 3 | Ground | 7/16″ | 8 | 13-13/16″W x 45-7/8″L x 14-9/16″H | 31 | |
| BR-M3D-BK | 6 | Ground | 7/16″ | 8 | 27-1/4″W x 42″Lx 14-9/16″H | 53 | |
| BR-M3S-W-BK | 3 | Wall Flange | 7/16″ | 8 | 12-7/8″W x 40-3/8″L x 4-1/16″H | 23 | |
| BR-GL-BK | 4 | Ground | 3/4″ | 2 | 5-5/16″W x 12-3/4″L x 22-1/2″H | 22 | |
| Galvanized Finish | |||||||
| BR-L2-GAL | 5 | Ground | 7/16″ | 8 | 4″ W x 31″L x 36″H | 25 | |
| BR-L3-GAL | 7 | Ground | 7/16″ | 8 | 4″W x 49″Lx36″H | 36 | |
| BR-ST-GAL | 2 | Ground | 7/16″ | 8 | 20″L x 38-5/16″W x 26-1/2″H | 31 | |
| BR-M3S-GAL | 3 | Ground | 7/16″ | 8 | 13-13/16″W x 45-7/8″L x 14-9/16″H | 31 | |
| BR-M3D-GAL | 6 | Ground | 7/16″ | 8 | 27-1/4″W x 42″Lx 14-9/16″H | 53 | |
| BR-M3S-W-GAL | 3 | Wall | 7/16″ | 8 | 12-7/8″W x 40-3/8″L x 4-1/16″H | 23 | |

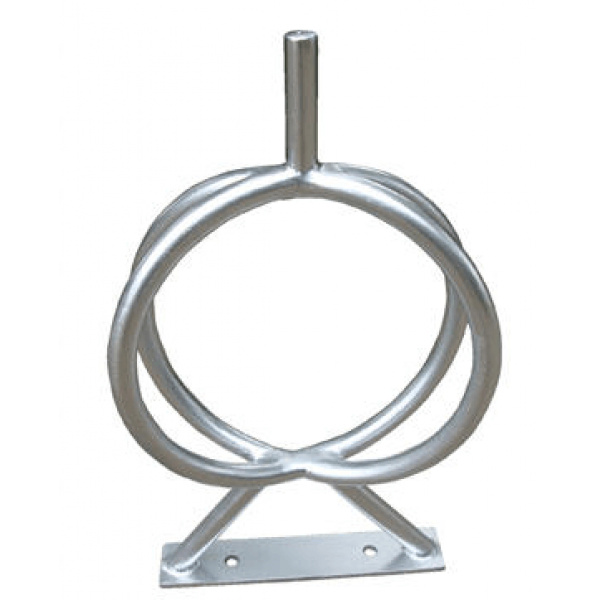

| BR-GL-G | 4 | Ground | 3/4″ | 2 | 5-5/16″Wx 12-3/4″L x 22-1/2″H | 22 | |
| AS-383 | 3/8″x3″L Concrete Anchor (sold each) | 2 | |||||
| AS-584 | 5/8″x4″L Concrete Anchor (sold each) | 2 | |||||
Industrial Manlifts is your aerial access solution provider. If you do not see the size you need, please contact one of our technical sales reps at 727-490-8839 for assistance. We can customize.
