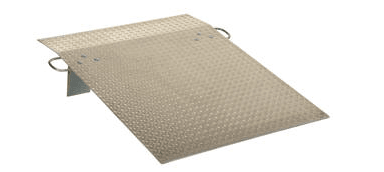

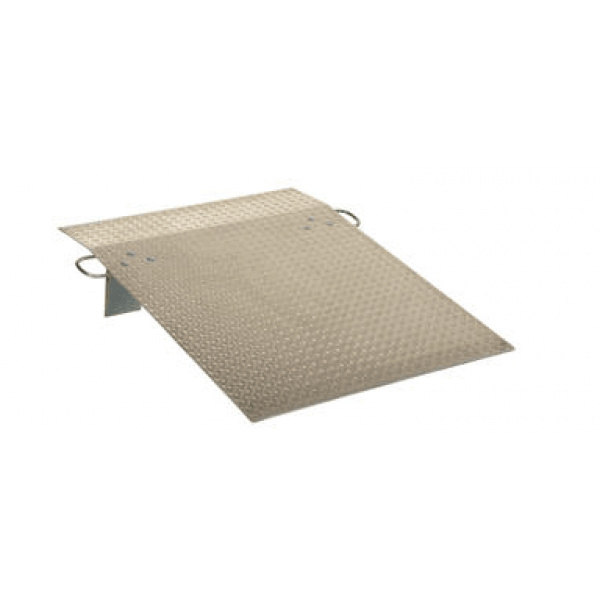

 Aluminum Hand Truck Dockplates



 Aluminum Hand Truck Dockplates Features:

Designed for use with two wheel hand trucks. A convenient, safe and easy way to access loading docks from trucks. Lightweight and easily portable by just one person. Treadplate surface ensures skid-resistant safe traction. Locking legs secure the plate for safe loading and unloading. Complete with bolt-on zinc plated carrying handles and locking legs.



Aluminum Hand Truck Dockplates
Model	PDFs	Plate Width	Plate Length	Height Diff.	Capacity (lbs)	Wt. (lbs)
1/4″ Plate Thickness
A-3024		30″	24″	3″	500	28
A-3030		30″	30″	4″	500	33
A-3036		30″	36″	5″	500	40
A-3048		30″	48″	7″	500	44
A-3624		36″	24″	3″	500	32
A-3630		36″	30″	4″	500	37
A-3636		36″	36″	5″	500	46
A-3648		36″	48″	7″	500	55
5/16″ Plate Thickness
AH-3024		30″	24″	3″	700	31
AH-3030		30″	30″	4″	700	35
AH-3036		30″	36″	5″	700	45
AH-3048		30″	48″	7″	700	53
AH-3624		36″	24″	3″	700	37
AH-3630		36″	30″	4″	700	43
AH-3636		36″	36″	5″	700	54
AH-3648		36″	48″	7″	700	63
Aluminum Dockplate Options – series A, AH, E, EH
Model	Description
DPR-2616	Dock Plate Rack
OHDL	No Handles
1HDL	One Handle
SDP	Smooth Deck Plate (Diamond side down)
SB	Special Bend or Location of Bend
SLL	Special Location of Legs
ATC-12	Anti-Theft Chain (per linear foot)
LHDL	Extra Pair of Legs with Handles & Hardware
TRADE	Trade in Allowance







Please contact Industrial Manlifts for specifications and RFQ’s.
