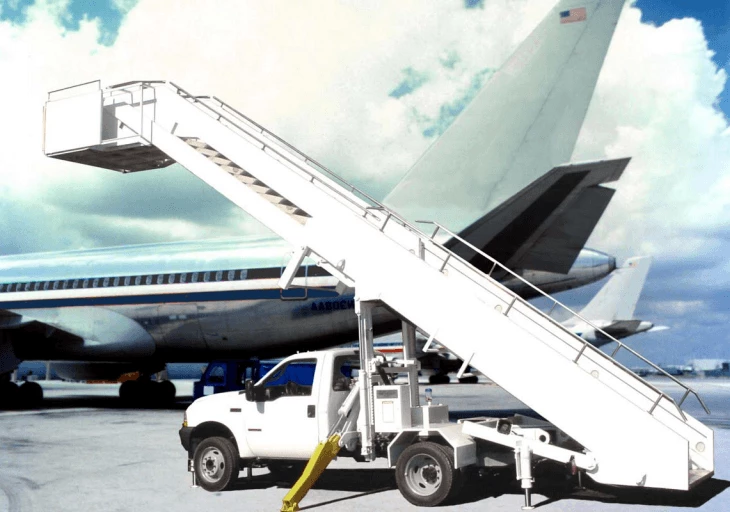

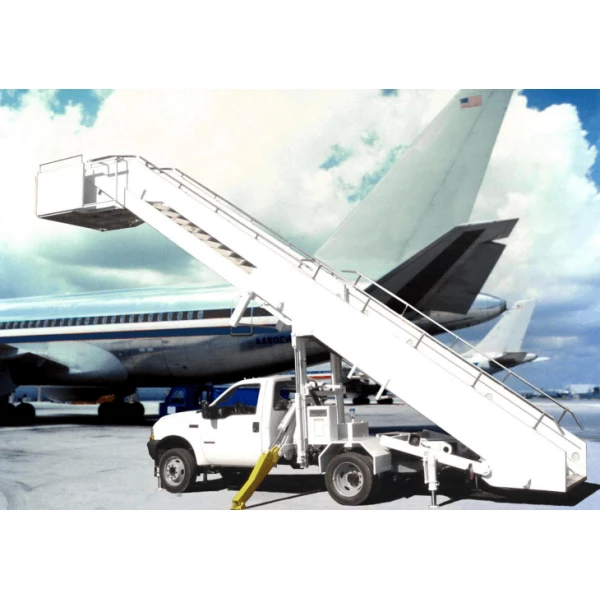

AIRBUS A300 Aircraft Boarding Staircase

The AIRBUS A300 Aircraft Boarding Staircase can be mounted on a commercial chassis (Ford F450).

The AS228 Aircraft Boarding Staircase Services:
AIRBUS: A300, A310, A319, A320,
A321, A330, & A340
BOEING: B707, B727, B737, B747,
B757, B767, B777, & MD11
McDONALD-DOUGLAS: DC8 &
DC10
LOCKHEED: L1011

AS228 Aircraft Boarding Staircase DIMENSIONS:
A. Overall Length: 25ft 6" (7.65 m)
B. Width Outriggers Retracted: 94" (2.39 m)
C. Width Outriggers Extended: 175" (4.45 m)
D. Wheel Base* : 11ft 9" (3.58 m)
E. Ground Clearance*:  6" (0.15 m)
F. Travel Height: 10ft 6" (3.20 m)
G. Upper Platform Maximum
Height:228" (5.97 m)
H. Upper Platform Minimum Height: 96" (2.44 m)

STAIRCASE FEATURES:

  • Platform Capacity 1000 lbs (453.6 kg)
  • Each Step Capacity 250 lbs (113.4 kg)
  • Engine Driven Pump Provides Hydraulic Power to Stair and Stabilization Cylinders
  • Emergency Lowering from Control Panel
  • Hydraulic and Electrical Connections are Quick Disconnect Allowing Easy Removal of Air Stair Assembly from Chassis with Standard Tools
  • Stabilizers Provide for Minimal Upper Platform Movement Even When Fully Loaded
  • Weatherproof, Recessed Lighting is Provided for all Steps and Upper Platform
  • Extendable Platform Handrails at Upper Platform Fully Protect Passengers While Not Interfering with Aircraft Door Operations
  • Gradability*: 20º
  • Non Slip Surface on Areas That Receive Foot Contact

STAIRCASE OPTIONS:

  • Cold Weather Winterization Package
  • Canopy Over Staircase & Platform

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377
