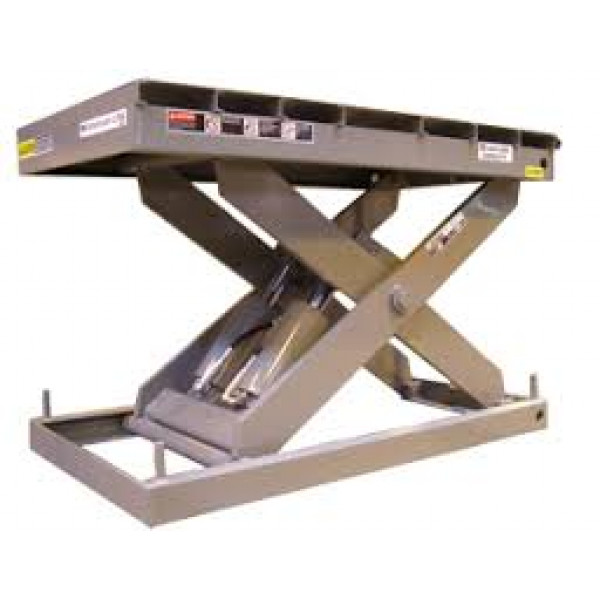

XLR Hydraulic Scissor Lift Table





Durability and Quality

  • Joints, the most critical wear points in the lift, feature chrome-plated, 100,000 psi, ultimate-strength pins for premium load strength and long life.
  • Minimum 1/2-inch-thick steel platform minimizes deck deflection, maximizes load stability, and greatly extends the life of the platform deck.
  • Solid steel legs and added stiffeners provide overall stability and straight, repeatable roller tracking as the lift raises and lowers.

Maintenance and Warranty

  • IML offers an industry-best 2 year warranty on all parts as a promise that you’ve purchased the industry’s most reliable scissors lift.
  • On-board maintenance devices enable maintenance crews to safely and effectively block open the scissors during inspection and routine maintenance.
  • Maintenance-free bearings at pivot points require no lubrication.
  • Vertically-mounted cylinders are easily accessed for inspection and maintenance.
  • Sturdy, semi-transparent polyurethane oil reservoir provides an easily visible method of checking fluid levels and eliminates oil contamination due to rust.
  • Double wire braided Parker hydraulic hoses resist wear, abrasion, and leaks.
  • High-strength steel rollers are easily replaced, minimizing downtime.
  • Hydraulic power unit is located at the end of the base frame for easy access during inspection and repair.
  • Simplicity
  • An industry-low 4-inch reach-over the sides of the lift keeps all work within the ergonomic “power zone.”
  • 1/2-inch collapsed height increases the total ergonomic range – minimizing bending and improving worker productivity.
  • Standard controls are prewired and internal power unit is onboard. Installation requires only that the lift be lagged to the floor and connected to electricity.
  • Near-zero lowered height is easily accessed by pallet jacks and other wheeled loads, making costly permanent concrete pits unnecessary.

Safety

  • Hinged ramp at the front of the lift also serves as a toe guard, keeping toes clear of the ground-level platform as it lands on the floor.
  • Hydraulic velocity fuses completely stop lifts in the unlikely event of uncontrolled descent due to sudden hose rupture.
  • Minimum 3:1 structural factor of safety makes these lifts the most structurally sound lift in the industry.
  • Compliance with recognized standards:
    • ANSI MH29.1 – Safety Requirements for Industrial Scissors Lifts
    • NFPA 70 – National Electric Code
    • ASTM – A36 – Structural Steel Standard
    • ANSI Z535 – Safety Labeling Requirements
    • AWS D.1 – Welding Standards
    • Applicable portions of OSHA 29CFR1910 – General workplace safety



XLR Hydraulic Scissor Lift Table Features:



ModelTravel (inches)Capacity (lbs#)Lowered HeightRaised HeightMinimum Platform WidthMaximum Platform WidthMaximum Platform LengthShipping Weight Approx# (lbs#)
36XLR5248-203620000.536.55252481030
36XLR5248-403640000.536.55252481150
48XLR5264-204820000.548.55252641370
48XLR5264-404840000.548.55252641570





Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377.
