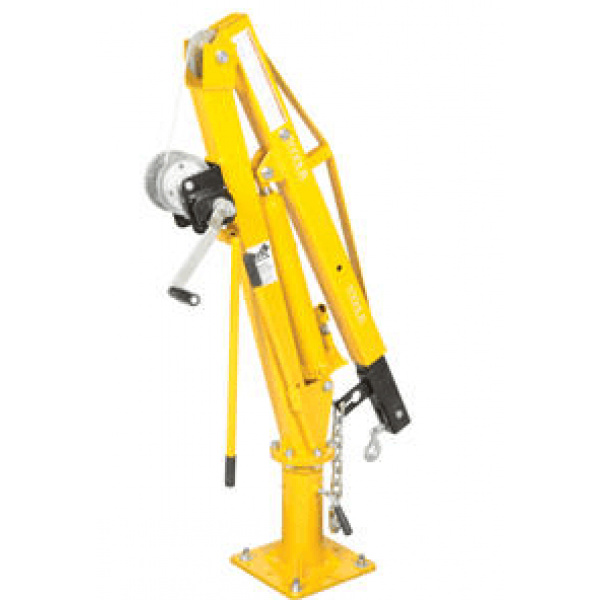

 Winch Operated Truck Jib Crane

 Winch Operated Truck Jib Crane Features:

Installed in your pick-up truck bed, this winch operated jib crane will help lift loads up to 1,000 pounds. Lift items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down.

Manual cable winch (with ¼” cable diameter) to lift and lower loads. Unit comes with one grab hook, one chain slot lock, and one sling hook with latch. Mounting plate is 10-5/8″ by 10-5/8″. Base height is 10″. Overall height is 56″. The crane swivels on a 360° base. Safety yellow in color. Welded steel construction. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

Winch Operated Truck Jib Crane
ModelOperationBoomFixed HookBoom Reach Lift Wt.
CapacityRange(lbs)
(lbs)
  Painted Safety Yellow Finish
WTJ-2Hand PumpExtended50054″0 TO 102″135
Retracted1,00030-1/4″10″ TO 89-1/2″
WTJ-4Hand PumpExtended1,00044″0 TO 86-1/2″145
Retracted2,00030″13-1/2″ TO 77-1/2″
WTJ-2-DC12V DCExtended50054″0 TO 102″160
Retracted1,00030-1/4″10″ TO 89-1/2″
WTJ-4-DC12V DCExtended1,00044″0 TO 86-1/2″170
Retracted2,00030″13-1/2″ TO 77-1/2″
 Galvanized Finish
WTJ-2-GHand PumpExtended50052″0 TO 86″134
Retracted1,00030-1/215-1/8″ TO 72″
WTJ-4-GHand PumpExtended1,00052″0 TO 85-7/8″218
Retracted2,00031″15-1/2″ TO 74-1/2″
WTJ-2-G-DC12V DCExtended50052″0 TO 86″165
Retracted1,00030-12″15-1/8″ TO 72″
WTJ-4-G-DC12V DCExtended1,00052″0 TO 85-7/8″245
Retracted2,00031″15-1/2″ TO 74-1/2″
 Stainless Steel Finish
WTJ-2-SSHand PumpExtended50052″0 TO 86″134
Retracted1,00030-1/2″15-1/8″ TO 72″
WTJ-4-SSHand PumpExtended1,00052″0 TO 85-7/8″218
Retracted2,00031″15-1/2″ TO 74-1/2″





Please contact Industrial Manlifts for specifications and RFQ’s.
