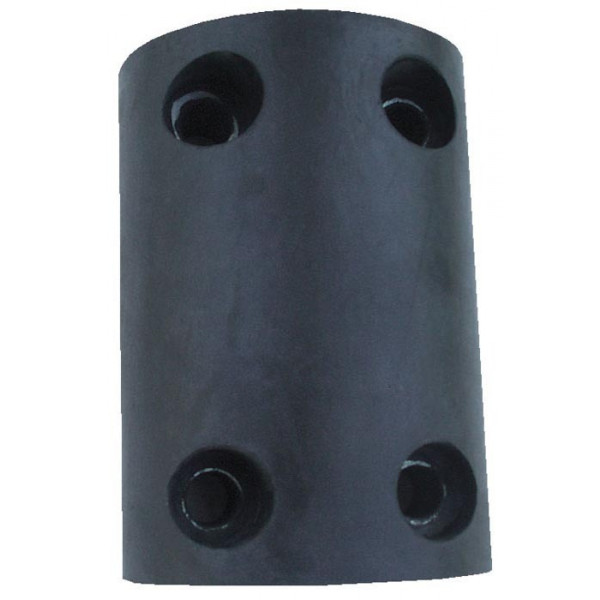

Trailer Crane Bumpers
Trailer Crane Bumpers
Trailer Crane Bumpers FeatureS:
Manufactured from fiber reinforced prime rubber containing nylon and polyester to resist abrasion, impact, wear and corrosion. Impervious to weather damage. All models have pre-drilled, countersunk mounting holes for easy installation. Bolt hole diameter is ." with the exception of model TB-90 at .". Installation hardware available separately, see below.
| Trailer & Crane Bumpers | |||||||
| Model | PDF's | Width | Length | # of Holes Size |
Projection | Color | Wt. (lbs) |
| TB-10 | 3" | 6" | 2-5/8" | 2-15/16" | Black | 3 | |
| TB-20 | 3-1/2" | 6" | 2-5/8" | 3-1/2 | Black | 5 | |
| TB-70 | 2" | 16" | 3-1/2" | 2" | Black | 3 | |
| TB-70-Y | 2" | 16" | 3-1/2" | 2" | Yellow | 3 | |
| TB-90 | 5-5/8" | 7-5/8" | 4-5/8" | 3-3/4" | Black | 6 | |
| Anchor Bolts Hardware For Concrete Installation | |||||||
| AS-125 | (1) 1/2" x 5", Use with TB-10, TB-20, TB-70, TB-70-Y |
1 | |||||
| AS-125-4PK | (4) 1/2" x 5", Use with TB-10, TB-20, TB-70, TB-70-Y |
2 | |||||
| AS-346 | (1) 3/4" x 6-1/4", Use with TB-90 |
1 | |||||
| AS-346-4PK | (4) 3/4" x 6-1/4", Use with TB-90 | 4 | |||||
Please contact Industrial Manlifts for specifications and RFQ's.
