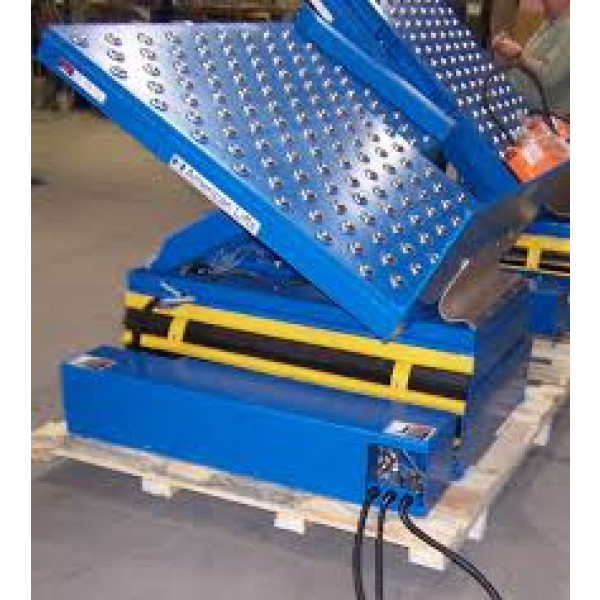

Tork Non-Intrusive Tilter

Tork Non-Intrusive Tilter



Durability and Quality

  • Tilt mechanism rollers are captured within structural steel channels to provide excellent load stability.
  • High impact, spiral wound bearings at every pivot point provide maintenance-free, rugged resistance to abrasion and impact/uneven loads.
  • Structural cross-members at every pinned joint in the tilt mechanism assembly minimizes leg deflection due to twisting or spreading under high or uneven loading.
  • All hydraulic cylinders contain two-piece, self-aligning piston rods that transmit minimal side forces to the cylinder hinges/pins, significantly reducing wear.
  • Structural steel channels in all upper and lower frames provide additional rigidity and resistance to twisting and bending of the lift under load.
  • Solid steel mechanism structure provides optimal overall stability and straight, repeatable tracking of the rollers as the unit tilts.
  • Joints, the most critical wear points in the lift, feature chrome-plated, 100,000 psi, ultimate-strength pins for premium load strength and long life.
  • Minimum 1/4-inch-thick steel-reinforced platform minimizes deck deflection, maximizes load stability, and greatly extends the life of the platform deck.

Maintenance and Warranty

  • IML offers an industry-best 2 year warranty on all parts as a promise that you've purchased the industry's most reliable tilter.
  • On-board maintenance devices enable maintenance crews to safely and effectively block open the scissors during inspection and routine maintenance.
  • Sturdy, semi-transparent polyurethane oil reservoir provides an easily visible method of checking fluid levels and eliminates oil contamination due to rust.
  • Low pressure hydraulic circuit extends the life of all hydraulic components and puts less stress on the electric motor.
  • Double wire braided Parker hydraulic hoses resist wear, abrasion, and leaks.

Simplicity

  • Non-intrusive design minimizes floorspace requirements for the operator.
  • Low collapsed height increases total ergonomic range.
  • Unique, automatic spring-return system forces unloaded platforms to lower faster
  • Standard controls are prewired and internal power unit is onboard. Installation simply includes lagging the unit to the ground and connecting to electricity.

Safety

  • Non-intrusive design keeps the load centered over the base frame of the lift at all times.
  • Minimum 3:1 structural factor of safety makes these lifts the most structurally sound lift in the industry.
  • Hydraulic velocity fuses completely stop lifts in the unlikely event of uncontrolled descent due to sudden hose rupture.
  • Compliance with recognized standards:
    • ANSI MH29.2 - Safety Requirements for Industrial Tilters
    • NFPA 70 - National Electric Code
    • ASTM - A36 - Structural Steel Standard
    • ANSI Z535 - Safety Labeling Requirements
    • AWS D.1 - Welding Standards
    • Applicable portions of OSHA 29CFR1910 - General workplace safety



Tork Non-Intrusive Tilter Features:





Model Travel (inches) Capacity (lbs#) Lowered Height (inches) Raised Height (inches) Base Frame Width Base Frame Length Maximum Platform Width Maximum Platform Length Shipping Weight Approx# (lbs#) Tilt (degrees)
TM1T-45-022 0 2200 8.625 0 24 48 50 60 525 45
TM2T-45-044 0 4400 8.625 0 24 48 50 60 600 45
TM3T-45-060 0 6000 9.625 0 24 48 50 60 650 45



Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (727) 490-8839.
