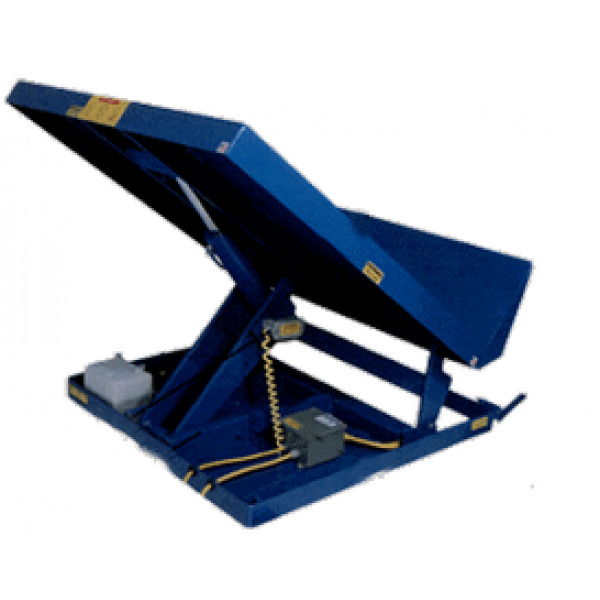

Single Scissor Lift & Tilt Table Features:
Designed to position containers within reach of assembly line workers and machine operators. This unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. A selector pedal allows the operator to lift while tilting or tilt then lift. 2HP AC power unit with hand pendant control is standard 208-230/460V, 3PH.
Standard features include: integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve and independent oil return and an adjustable upward travel limit switch. Unit must be lagged to the floor.
| Single Scissor Lift & Tilt (Uni-Tilt) | |||||||
| Model | PDF’s | Platform size (WxL) | Capacity (lbs) | Level Height | Degree Of Tilt | Power Unit |
Wt. (lbs) |
| UNI-2448-2 | 24″x48″ | 2,000 | 8″ | 40° | Internal | 606 | |
| UNI-3648-2 | 36″x48″ | 2,000 | 8″ | 40° | Internal | 640 | |
| UNI-4048-2 | 40″x48″ | 2,000 | 8″ | 40° | Internal | 696 | |
| UNI-4848-2 | 48″x48″ | 2,000 | 8″ | 40° | Internal | 735 | |
| UNI-5448-2 | 54″x48″ | 2,000 | 8″ | 40° | Internal | 885 | |
| UNI-2448-4 | 24″x48″ | 4,000 | 8″ | 40° | Internal | 631 | |
| UNI-3648-4 | 36″x48″ | 4,000 | 8″ | 40° | Internal | 665 | |
| UNI-4048-4 | 40″x48″ | 4,000 | 8″ | 40° | Internal | 723 | |
| UNI-4848-4 | 48″x48″ | 4,000 | 8″ | 40° | Internal | 743 | |
| UNI-5448-4 | 54″x48″ | 4,000 | 8″ | 40° | Internal | 910 | |
| UNI-9648-4 | 96″x48″ | 4,000 | 8″ | 40° | Internal | 1296 | |
| UNI-4048-6 | 40″x48″ | 6,000 | 8″ | 40° | Internal | 748 | |
| UNI-4848-6 | 48″x48″ | 6,000 | 8″ | 40° | Internal | 763 | |
| UNI-5448-6 | 54″x48″ | 6,000 | 8″ | 40° | Internal | 935 | |
| UNI-9648-6 | 96″x48″ | 6,000 | 8″ | 40° | Internal | 1294 | |
Please contact Industrial Manlifts for specifications and RFQ’s.
