Security Mesh Partitions

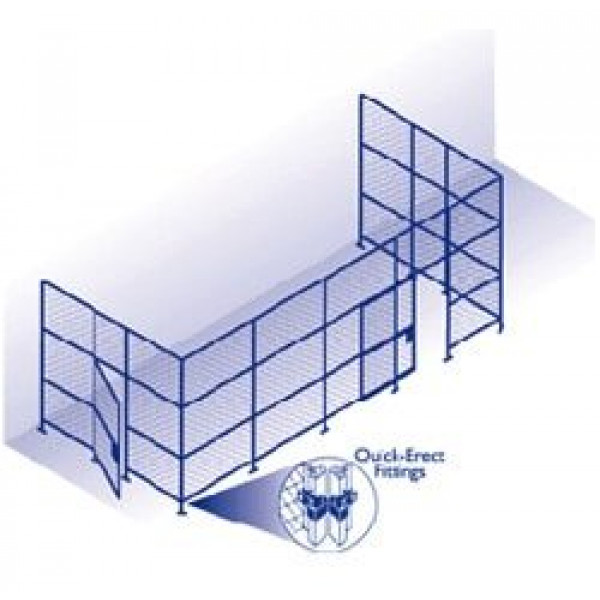

Security Mesh Partitions can be used to build enclosures without sacrificing visibility or having to reroute existing air ducts, piping, and lighting systems.

Security Mesh Partitions

Security Mesh Partitions can be used to build enclosures without sacrificing visibility or having to reroute existing air ducts, piping, and lighting systems.
  • Choose from a variety of panel, door, and hardware configurations to meet your specific needs.
  • Strong yet lightweight design requires no corner posts, saving you both initial investment and shipping costs.
  • Palletized shipping virtually eliminates damage in transit or missing parts. Quick and easy assembly requires no power tools.
Security Mesh Partitions Panels: Standard panel widths are 1-to-5 foot and come in 7-, 8-, and 10-foot heights. In general, it's most economical to design your enclosure using panels that are 5-foot wide and 7 foot tall, incorporating narrower or shorter panels only where necessary. Or use convenient Vari panels to create incremental widths or accommodate non-square dimensions.
  • 13-gauge expanded metal construction features 1 1/2 " diamonds
  • Adjustable floor sockets allow true vertical alignment.
  • Available, fully integrated solid or wainscot panels provide added security/privacy. Keep gear or stock out of sight.
  • Available extension panels can increase enclosure height up to 20 feet.
  • Available ceilings provide ultimate security against theft or unauthorized access.
  • Standard finish is durable gray enamel. Special colors are available.
Security Mesh Partitions Doors There are two types of doors available: Sliding doors, which are 3-to-6 feet wide or swinging doors, which are 3- and 4-feet wide. Both sliding and swinging doors are available in 7-, 8-, and 10-foot heights.
  • Either can be ordered with an integrated 3' 10" x 18" service window and a 12" steel shelf.
  • Security opening accommodates various types of locks.
  • 13-gauge expanded metal construction features 1 1/2 " diamonds
  • Available integral 18-gauge wainscot or steel panels for added security/privacy.
Double-slide or double-swing doors are available to accommodate transit of larger equipment. Security Mesh Partitions Locking Systems Available for sliding or swinging doors:
  • Pickproof, reversible multi-lock has welded door-keeper and high impact die cast aluminum case.
  • Five pin, 1" standard cylinder is secured by nut inside lock.
  • Brass cylinder, tongues, and recessed knurled operating knob.
  • Keys can be door unique, keyed alike, or master keyed.
Hinged Door (With Transom) - 10 Ft. Height
Model # Width Wt. Lb.
DH103 3' 53
DH104 4' 66
Hinged Door (With Transom) - 7 Ft. Height
Model # Width Wt. Lb.
DH73 3' 43
DH74 4' 52
Hinged Door (With Transom) - 8 Ft. Height
Model # Width Wt. Lb.
DH83 3' 45
DH84 4' 55
Odd Size Panel - 10Ft. Height
Model # Width Wt. Lb.
OP100 4"-1' 12
OP101 1'-2' 19
OP102 2'-3' 32
OP103 3'-4' 44
OP104 4'-5' 58
Odd Size Panel - 7Ft. Height
Model # Width Wt. Lb.
OP70 4"-1' 7
OP71 1'-2' 13
OP72 2'-3' 23
OP73 3'-4' 33
OP74 4'-5' 41
Odd Size Panel - 8Ft. Height
Model # Width Wt. Lb.
OP80 4"-1' 10
OP81 1'-2' 05
OP82 2'-3' 25
OP83 3'-4' 35
OP84 4'-5' 45
Sliding Door (Full Height Option) - 10 Ft. Height
Model # Width Wt. Lb.
DSH1005 5' 94
DSH1006 6' 106
DSH1008 8' 132
DSH1010 10' 157
Sliding Door (Full Height Option) - 7 Ft. Height
Model # Width Wt. Lb.
DSH705 5' 76
DSH706 6' 85
DSH708 8' 104
DSH710 10' 122
Sliding Door (Full Height Option) - 8 Ft. Height
Model # Width Wt. Lb.
DSH805 5' 80
DSH806 6' 90
DSH808 8' 110
DSH810 10' 113
Sliding Door (Standard) - 10 Ft. Height
Model # Width Wt. Lb.
DS103 3' 68
DS104 4' 81
DS105 5' 94
DS106 6' 106
Sliding Door (Standard) - 7 Ft. Height
Model # Width Wt. Lb.
DS73 3' 58
DS74 4' 67
DS75 5' 76
DS76 6' 85
Sliding Door (Standard) - 8 Ft. Height
Model # Width Wt. Lb.
DS83 3' 60
DS84 4' 70
DS85 5' 80
DS86 6' 90
Standard Wall Panel - 10Ft. Height
Model # Width Wt. Lb.
SP101 1' 13
SP102 2' 27
SP103 3' 38
SP104 4 51
SP105 5' 64
Standard Wall Panel - 7Ft. Height
Model # Width Wt. Lb.
SP71 1' 9
SP72 2' 18
SP73 3' 28
SP74 4' 37
SP75 5' 46
Standard Wall Panel - 8Ft. Height
Model # Width Wt. Lb.
SP81 1' 10
SP82 2' 20
SP83 3' 30
SP84 4' 40
SP85 5' 51
Structural Requirements - Adjustable Corner Post (Non 90 degree Intersections) - 10 Ft. Height
Model # Width Wt. Lb.
LPA10 - 21
Structural Requirements - Adjustable Corner Post (Non 90 degree Intersections) - 7 Ft. Height
Model # Width Wt. Lb.
LPA7 - 16
Structural Requirements - Adjustable Corner Post (Non 90 degree Intersections) - 8 Ft. Height
Model # Width Wt. Lb.
LPA8 - 17
Structural Requirements - Corner Hardware
Model # Width Wt. Lb.
CH - 2
TH - 3
Structural Requirements - Line Post (Extra Heavy) - 10 Ft. Height
Model # Width Wt. Lb.
LPE10 - 25
Structural Requirements - Line Post (Extra Heavy) - 7 Ft. Height
Model # Width Wt. Lb.
LPE7 - 18
Structural Requirements - Line Post (Extra Heavy) - 8 Ft. Height
Model # Width Wt. Lb.
LPE8 - 20
Structural Requirements - Line Post (Standard) - 10 Ft. Height
Model # Width Wt. Lb.
LP10 - 20
Structural Requirements - Line Post (Standard) - 7 Ft. Height
Model # Width Wt. Lb.
LP7 - 14
Structural Requirements - Line Post (Standard) - 8 Ft. Height
Model # Width Wt. Lb.
LP8 - 16
Vari Panel - 10Ft. Height
Model # Width Wt. Lb.
VP10 Adj. 3"-1' 13
Vari Panel - 7Ft. Height
Model # Width Wt. Lb.
VP7 Adj. 3"-1' 9
Vari Panel - 8Ft. Height
Model # Width Wt. Lb.
VP8 Adj. 3"-1' 10
Designed to the strict guidelines of the American National Standards Institute (ANSI) and the regulations of the Occupational Safety & Health Administration (OSHA). Ships anywhere in the United States and Internationally.
 Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377
