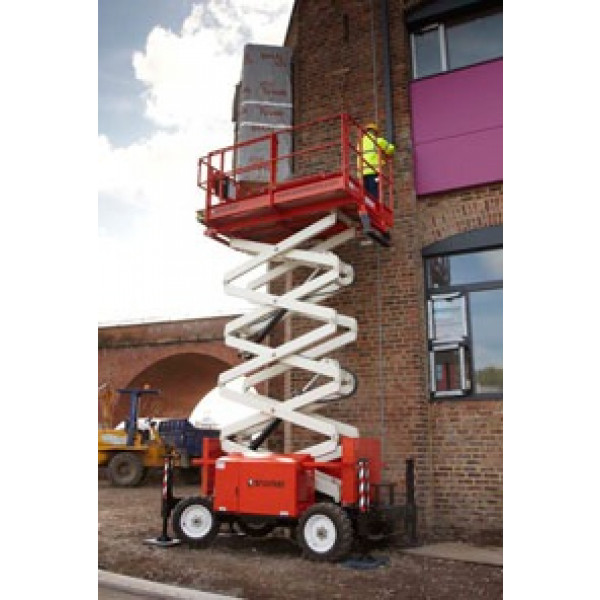

S2770/3370RT Rough Terrain Scissor Lift
S2770/3370RT Rough Terrain Scissor Lift Features:
- Slide-out deck extension
- 4 wheel drive
- 4 hydraulic stabilizers with automatic levelling
- Horn
- Proportional joystick control
- Foam filled lug tires
- Power line to platform
- Driveable at full height
- Articulating axle
- Drive motion alarm
- Lower warning alarm
- Fold-down guardrails
- ANSI compliant
S2770/3370RT Rough Terrain Scissor Lift OPTIONS:
- Special paint colors
- Flashing amber lights
- Non marking tires
- D-ring safety harness lanyard attachments (x2)
- LPG power
- Hydraulic generator
- CSA compliant
S2770/3370RT Rough Terrain Scissor Lift Specifications:
DIMENSIONS | S2770RT | S3370RT | |
Max. working height | 33 ft | 39 ft | |
Max. platform height (A) | 27 ft | 33 ft | |
Platform size (stowed) (B) | 8 ft 11 in x 5 ft 5 in | 8 ft 11 in x 5 ft 5 in | |
Platform size (extended) (C) | 13 ft 1 in x 5 ft 5 in | 13 ft 1 in x 5 ft 5 in | |
Deck extension | 4 ft | 4 ft | |
Overall width (D) | 5 ft 10 in | 5 ft 10 in | |
Overall length (E) | 11 ft | 11 ft | |
Stowed height (F) | 8 ft 6 in | 9 ft | |
Min. height (guardrails folded) | 6 ft | 6 ft 6 in | |
Ground clearance | 13 in | 13 in | |
PERFORMANCE | |||
Platform capacity (SWL) | 1,250 lbs. | 1,000 lbs | |
Max. drive height | 27 ft | 33 ft | |
Max. drive speed (stowed) | 2.8 mph | 2.8 mph | |
Max. drive speed (elevated) | 0.2 mph | 0.2 mph | |
Raise/lower time | 26/30 sec | 50/60 sec | |
Gradeability | 35% | 35% | |
Max. stabilizer levelling, front to rear | 6° | 6° | |
Max. stabilizer levelling, side to side | 10° | 10° | |
Inside turning radius | 9 ft 3 in | 9 ft 3 in | |
Outside turning radius | 15 ft 1in | 15 ft 1in | |
Tires | 27 x 10.5 – 15 foam filled loader lug | ||
Controls | proportional joystick | ||
Drive system | 4 wheel drive | 4 wheel drive | |
POWER | |||
Power source | Kubota D-902 water cooled diesel 22.5h | ||
WEIGHT | |||
Gross weight | 6,172 lbs | 7,980 lbs |
