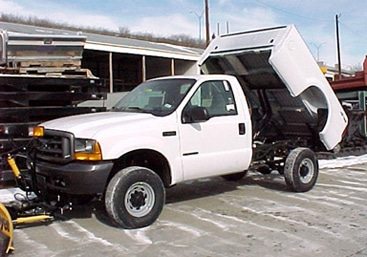

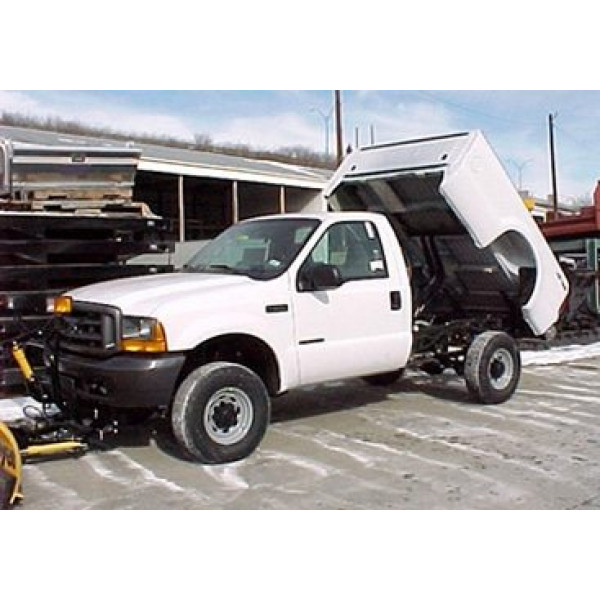

Pick Up Hoists VP6F

The VP6F Dump Hoist is designed for the Ford Superduty F-Series 1999-2015 models. Industrial Manlifts (888)730-8377

Pick Up Hoists VP6F



Pick Up Hoists VP6F Features:



The VP6F Dump Hoist is designed for the Ford Superduty F-Series 1999-2015 models. (2011-2015 GAS ONLY - truck must have a GVWR rating greater than 10,000 LBS.)

In order to comply with the 2015 Ford Super Duty F-Series Incomplete Vehicle Manual FMVSS (Federal Motor Vehicle Safety Standard) 301 Fuel System Integrity, installation of the hoist is prohibited on trucks with a GVWR of 10,000 lbs. or less, because the hoist requires modification to some or all of the following: fuel tank attachment hardware, fuel filler cap, pipe, hose, attachment hardware and/or trailer hitch receiver.



FEATURES & BENEFITS

Heavy duty 6,000 LB capacity
45 degree dumping angle
No welding of truck frame or pickup box
In-cab electronic controls
Bumper mounting kit
Longitudinal body supports
Safety prop
1999-2014 Ford Superduty F-Series 8 FT box pickup truck (see note above)
Factory assembled to eliminate part shortages and speed installation
Available model for  use with platform/contractor bodies (VC series)

SPECIFICATIONS

3″ diameter cylinder, 17 – 3/8″ stroke operating at 2800 PSI (Double acting option operates at 650 PSI down pressure)
Factory assembled variable width mounting base adapts to original cross member
One-piece unitized upper next insures maximum support to pickup body
Built-in tapered guides standard
Heavy-duty 12 Volt electric-hydraulic single-acting and double-acting pumps





Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377.
