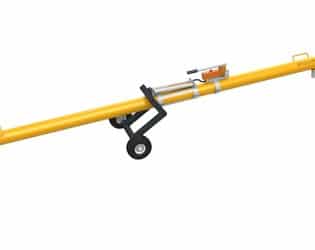

MC Donnell Douglas DC-9 Towbar (TOWMD80-L)

Description

MC Donnell Douglas DC-9 Towbar (TOWMD80-L)

Basic Description

  • Tube made of high strength steel
  • Rigid towbar eye diameter 3 inches (76,2 mm)
  • Rigid towbar head (lock pin type) with shear pins for push/pull and torque and retaining pin for maximum safety
  • Hydraulically height-adjustable undercarriage with pneumatic tires and floating axle system for easy handling
  • Tube-mounted shear pin holder including spare shear pins
  • Every single part such as towbar head, towbar eye and undercarriage is mounted to the tube by screw and is exchangable
  • Towbar head and towbar eye are galvanised and/or salt bath nitrated
  • The remaining parts are painted with Skydrol resistant colour: yellow RAL 1028
  • 36 months warranty

Technical Specification

Length: 3,7 m
Weight: 189 kg
