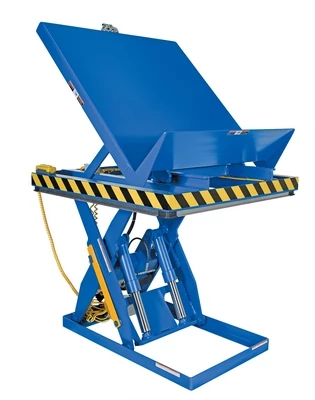

Lift & Tilt Scissor Tables



Lift & Tilt Scissor Tables Features:

Performs both lifting and tilting operations. 45° tilt standard. Restraining chain and 12″ high lip keep load in place during tilting. Safety features include: electric toe guard to shield worker from pinch points during lowering of table, velocity fuses to stop travel due to loss of hydraulic pressure, 4 push-button hand pendent control on an 8 foot coil cord, upper limit switch to stop travel at maximum height reducing motor wear and maintenance prop. End tilt standard, side tilt available. Optional accordion skirting available for both the lifting and tilting portions of the table, contact factory.



• Steel Cradle is 12″ high, open design allows loading/unloading from three sides.
• Unique link tilt design center of load remains closer to the center of the table to increase safety and minimize space requirements.
• Brass Velocity fuse in cylinder prevents drop of table in event of hydraulic failure.
• 45 degree maximum tilt, 36″ of vertical travel
• Slot lock and restraint chain.
• NEMA-4 hand control provides a weatherproof case for years of durability.   Fused 24 Volt control helps to ensure operator safety.
• Perimeter pinch point guard
• Industrial quality, 56 frame, 2 HP motor delivers best torque with minimal amperage draw and maximum life.
• Upper Travel limit switch is field adjustable
• 3000 PSI component rating on crimped hoses and fitting





Lift & Tilt Scissor Tables
Model	Platform size	Capacity (lbs)	Raised Height	Lowered Height	Overall	Wt.
					Size	(lbs)
					(WxL)
45° End Tilt
EHLTT-3648-1-47	36″x48″	1000	47″	11″	36″x56″	1208
EHLTT-4848-1-47	48″x48″	1000	47″	11″	48″x56″	1228
EHLTT-3648-2-47	36″x48″	2000	47″	11″	36″x56″	1204
EHLTT-4848-2-47	48″x48″	2000	47″	11″	48″x56″	1235
EHLTT-3648-3-47	36″x48″	3000	47″	11″	36″x56″	1299
EHLTT-4848-3-47	48″x48″	3000	47″	11″	48″x56″	1251
EHLTT-3648-4-47	36″x48″	4000	47″	11″	36″x56″	1206
EHLTT-4848-4-47	48″x48″	4000	47″	11″	48″x56″	1282
EHLTT-4848-5-47	48″x48″	5000	49″	13″	48″x56″	1482
45° Side Link Tilt
EHLTTS-3654-2-48	36″x54″	2000	48″	12″	38″x54″	1238
EHLTTS-3654-4-48	36″x54″	4000	48″	12″	38″x54″	1500
90° Hinge Tilt
EHLTT-H-3648-2-47	36″x49-3/8″	2000	47″	11-1/4″	36″x 57-5/8″	1179
EHLTT-H-4848-2-47	48″x49-3/8″	2000	47″	11-1/4″	48″x 57-5/8″	1268





Please contact Industrial Manlifts for specifications and RFQ’s.

 Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (727) 490-8839.
