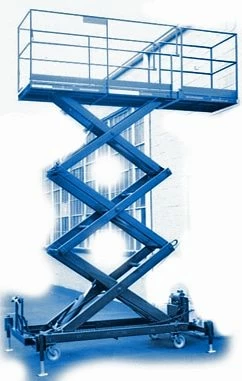

Hydraulic Scissor Lift

The Hydraulic Scissor Lift Man Lift is a heavy-duty platform lift designed for safety and efficiency in elevated tasks. It features a 1000 lb. capacity, a spacious 3′ x 8′ serrated platform, 120V AC power, and a fully enclosed structure with 42″ guardrails. With easy mobility, self-storing outriggers, leveling jacks, and ANSI-compliant controls, this lift ensures stability and secure operation for up to four people. Perfect for industrial and commercial applications, it’s built for reliable performance and operator safety.

Description

Introducing the Hydraulic Scissor Lift Man Lift—a powerful, reliable solution designed for elevated tasks that demand stability, safety, and efficiency. Perfect for industrial and commercial applications, this scissor lift combines advanced safety features with heavy-duty performance to ensure operators can work confidently at height.

Key Features:

  • Rated Capacity: 1000 lbs. (supports up to four persons)
  • Power Source: 120 Volt AC with thermal overload protection (DC option available for added flexibility)
  • Platform Safety: Features a fully enclosed platform with 42″ guardrails, midrails, 4″ toeboards, and a swing-in gate for safe entry and exit.
  • Spacious Platform: The 3′ x 8′ platform is equipped with a serrated grating deck for secure footing, minimizing slip risks.
  • Built-in Ladder: A convenient ladder allows easy access to the platform when fully lowered.
  • Enhanced Stability: Boxed scissor members and oversize cross-axles reduce platform sway, providing a stable workspace at height.
  • Ease of Mobility: Sturdy rectangular base frame with non-marking 8″ swivel casters, equipped with wheel and swivel locks for effortless movement.
  • Self-Storing Outriggers: Outriggers provide maximum stability (optional on lower-height models).
  • Leveling Jacks: Secure the unit on uneven surfaces, standard on models with deck heights above 15′ (optional for lower heights).
  • Precision and Safety: Bubble levels indicate proper leveling, ensuring safe operation on all surfaces.
  • High Visibility: The unit is finished in Safety Orange, making it easily visible in busy work environments.
  • ANSI Compliance: Meets/exceeds ANSI A92.3-1990 code requirements for elevated work platforms.
  • Operator Controls: For optimal safety, platform controls require both hands to change elevation, while emergency stops are available on the platform and at the base for quick shutdowns.



Item# Working Height Platform Outriggers Weight Price
Min. Max.
  HW1-7 13′ 2’4” 7’4” not needed 1700 Call
  HW1-10 16′ 5′ 10’1” not needed 1800 Call
  HW2-13 19′ 3′ 12’10” not needed 2000 Call
  HW2-16* 21′ 5’8” 15’8” required 2100 Call
  HW3-19* 24′ 3’7” 18’8” required 2300 Call
  HW3-22** 27′ 6’4” 21’4” required 2400 Call
  HW4-24** 30′ 4’1” 24’4” required 2700 Call
  HW4-27** 33′ 6’8” 27′ required 2800 Call
* add 20″ to 4-ft base width for outriggers      ** add 40″ to 4-ft base for outriggers
Optional Equipment
Air-Hydraulic Power Option…… Call
DC Portable Battery Power Option…… Call
Cantilevered Platform extending from deck for added platform length Option…… Call



Whether you’re working on maintenance, installations, or other elevated tasks, the Hydraulic Scissor Lift Man Lift provides unmatched safety and performance. With its robust design, ease of use, and compliance with industry safety standards, it’s the ideal choice for lifting personnel to greater heights with confidence.

Optimize your workspace today with the Hydraulic Scissor Lift Man Lift from Industrial Man Lifts!
