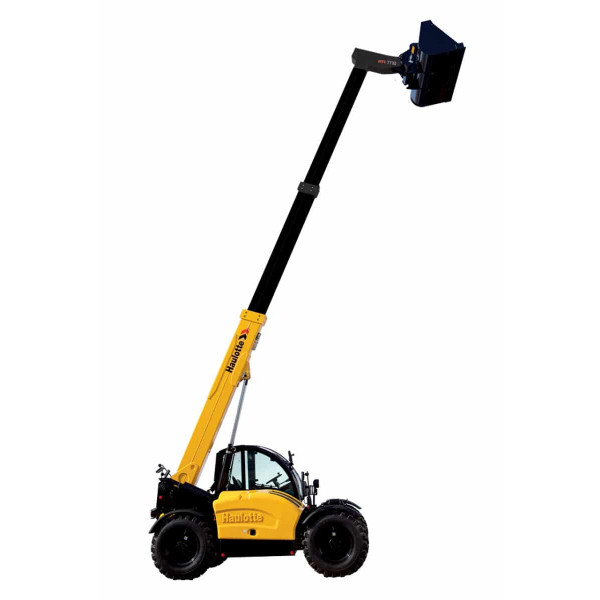

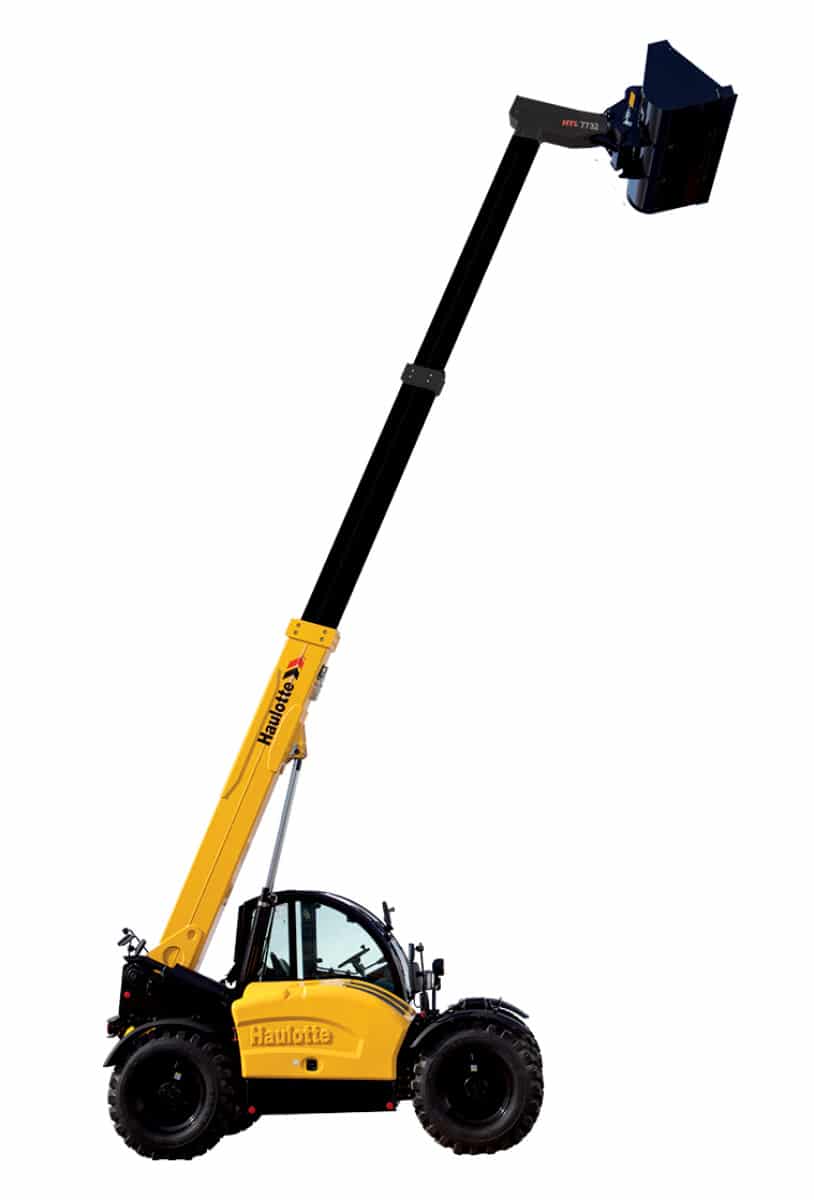

HTL7732 TIERIII Telescopic Telehandler

Rated 4.5/5 based on 1reviews

HTL7732 TIERIII Telescopic Telehandler is 5m in length. Industrial Manlifts (888)730-8377 Share Tweet Share +1 WhatsApp EmailShares 0

HTL7732 TIERIII Telescopic Telehandler



HTL7732 TIERIII Telescopic Telehandler Features:



  • High safety cab
  • Smart control 4-in-1 joystick
  • Best lifting performance
  • High performance lifting capacity
  • High maximum reach capacity
  • Best Precision and user comfort
  • Full hydrostatic transmission for more comfort and productivity
  • Best lateral visibility
  • Dangerous movements cut out switch
  • Compact and strong
  • 5 m length
  • Tilt corrector



TECHNICAL DATA

Alternator0 A
Approach angle30 °
Lower rotation of forks104 °
Upper rotation of forks18 °
Lift capacity to full height4410 lbs
Lift capacity at full reach1102 lbs
Maximum lift capacity7718 lbs
Oil reservoir27.2 gal
Tilt corrector10 °
Engine capacity268.4 in3
Wheelbase9 ft 1 in
Ground clearance16.5 in
Height to high boom pivot5 ft 3 in
Height7 ft 1 in
Maximum fork height32 ft 10 in
Engine oil1.85 gal
Overall width – stabilizers down7 ft 5 in
Cab width3 ft 2 in
Width7 ft 5 in
Length16 ft 3 in
Engine modelPERKINS TIER III
Maximum gradient45 %
Weight with forks18985 lbs
Reach at maximum fork height7 ft 3 in
Maximum forward reach23 ft 7 in
Engine power output70kW @ 2300rpm
Outside turning radius12 ft 2 in
Fuel tank31.7 gal
Tires type16/70 – 24
Speed in traveling mode15.5 mph
Speed in working mode5 mph
Track width6 ft 2 in
Engine torque392Nm @ 1400rpm

STANDARD EQUIPMENT

  • Heavy duty Hydrostatic transmission with variable capacity pump and engine
  • 4 wheel drive and 4 wheel steer
  • Gear equipment pump
  • Proportional controls for movement of boom/telescopic arm/excavation and accessories
  • Safety valves on hydraulic jacks
  • Auxiliary hydraulic ports
  • Overload / dangerous movements cut out switch
  • Tilt corrector: +/- 10 º
  • ROPS/FOPS cabin with heating and ventilation
  • Back-lit e-tronic dashboard

MAIN OPTIONS

  • Winches
  • Electrically hydraulic controls
  • Cold Weather Package
  • Biodegradable oil
  • Cold environment oil
  • Hot environment oil
  • Air conditioning
  • Working lights
  • 4-in-1 bucket and standard bucket
  • Jib attachment and winch

Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377.


Request Quote For HTL7732 TIERIII Telescopic Telehandler
