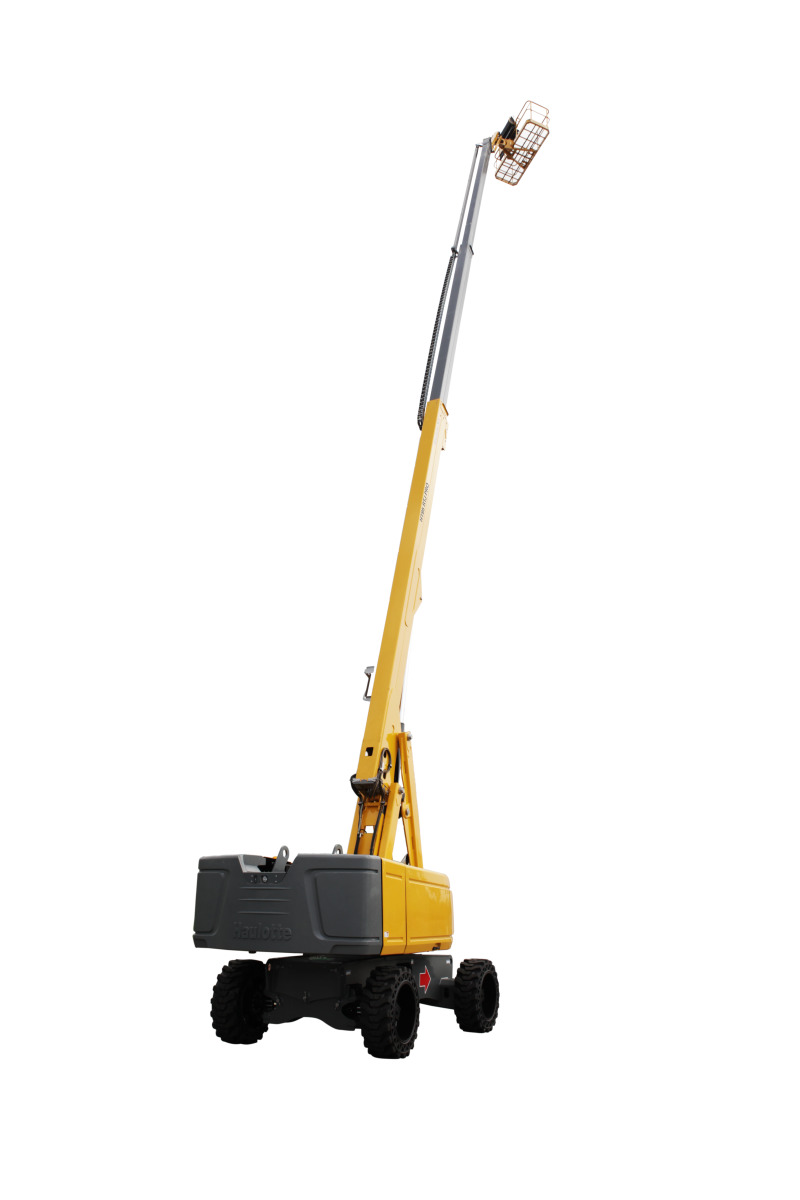

HT85 RTJO Telescopic Boom Lift Specifications:
| Working height | 91 ft |
| Platform height | 85 ft |
| Horizontal outreach | 78 ft 3 in |
| Lift capacity | 500 lb (2 pers.) – option 770 lb |
| Platform size | 8 ft x 3 ft |
| Length – stowed | 42 ft 1 in |
| Length – transport | 32 ft 2 in |
| Width | 8 ft 2 in |
| Height – stowed | 9 ft 4 in |
| Height – transport | 9 ft 9 in |
| Vertical jib rotation | 133° (- 66° / + 67°) |
| Platform rotation | 180° (+ 90° / – 90°) |
| Turret swing | 360° continuous |
| Tailswing | 60 in |
| Wheelbase | 9 ft 2 in |
| Ground clearance | 19 in |
| Tilt alarm | 4 ° |
| Drive speed | 0.3 – 3.1 mph |
| Gradeability | 45% |
| Turning radius – outside | 21 ft 6 in |
| Weight | 39,500 lb |
| Jib length | 6 ft |
| Engine | Kubota, 53 kW (72hp), Tier 4 final |
| Fuel tank | 32 gal |
| Below grade reach | 9 ft 8 in |
| Tires – solid rough terrain | 40.4 x 14.4 in |
| Maximum wind speed rating | 28 mph |
