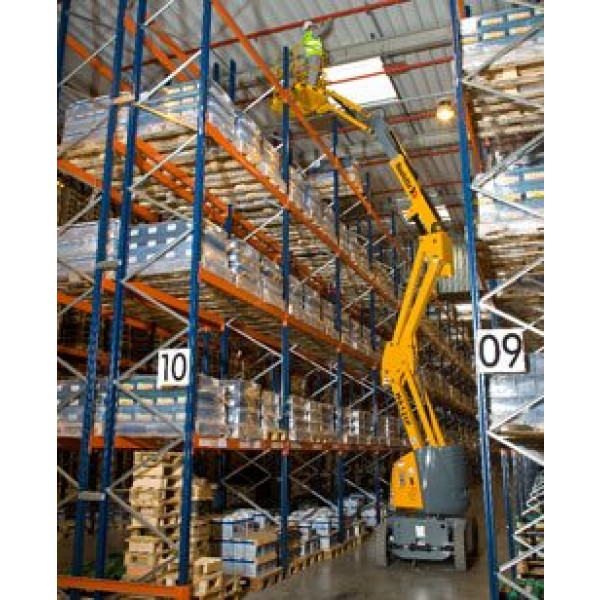

HA 33 JE Articulating Boom Lift

Description

The HA 33 JE boom lift with 38 feet working height is part of the range of aerial work platforms /electrical articulating booms lift for people and material lifting.

  • Electric drive
  • Turntable rotation 355° without tailswing
  • 6 ft 6 in stowed height for easy travel through doorways
  • 9 ft 4 in compact turning radius and 4 ft 5 in width allows operation in the most congested areas
  • Full proportional controls at basket
  • Robust, reliable and easy to maintain
Working height 38ft 10in
Platform height 32ft 10in
Lift capacity (lb) 507
Platform size 3ft 11in x 2ft 7in
Horizontal reach 21ft 8in
Up and over clearance 17ft 3in
Height (stowed) 6ft 6in
Width 4ft 5in
Length 17ft 10in
Gradeability (%) 25
Power source 48V – 360 Amp/h C5
Weight (lb) 13010



Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (727) 490-8839
