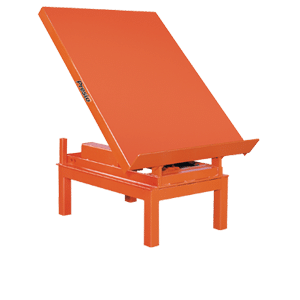

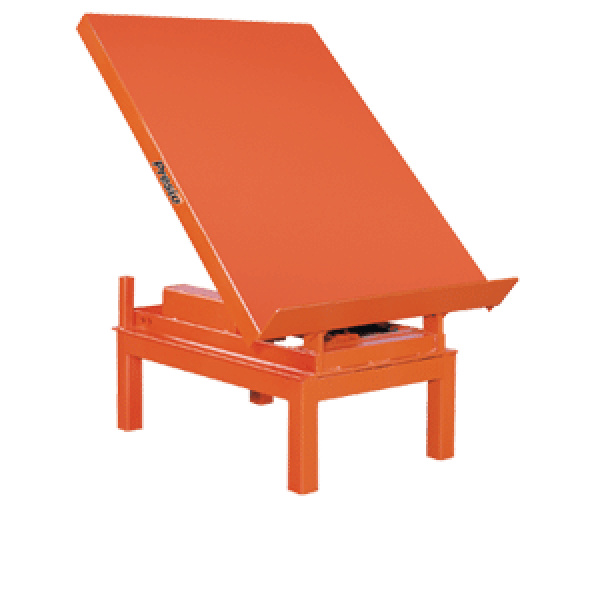

Fixed Height Tilters TT30-10
Fixed Height Tilters TT30-10 Features:
These fixed height tilters can be mounted on legs, workbenches or directly on the floor. They are ideal for odd shaped or sized containers or odd loads. They are also useful for positioning items for wiring, assembly and fabricating applications.
TT Series Fixed Height Tilters are available with 30˚, 45˚ or 60˚ of tilt and can handle loads up to 6,000 lbs.
Model Number |
Tilt Capacity |
Low Height |
Degree of Tilt |
Standard Base |
Standard Platform |
Maximum Platform |
Lifting Speed |
Shipping Weight |
---|---|---|---|---|---|---|---|---|
TT30 Series | ||||||||
TT30-10 | 1000 lbs | 6 ½” | 30° | 24 x 30″ | 24 x 36″ | 36 x 48″ | 15 sec | 310 lbs |
TT30-15 | 1500 lbs | 6 ½” | 30° | 24 x 30″ | 24 x 36″ | 36 x 48″ | 15 sec | 325 lbs |
TT30-20 | 2000 lbs | 7 ½” | 30° | 24 x 36″ | 24 x 36″ | 50 x 50″ | 10 sec | 530 lbs |
TT30-40 | 4000 lbs | 7 ½” | 30° | 24 x 36″ | 24 x 36″ | 50 x 50″ | 11 sec | 520 lbs |
TT30-60 | 6000 lbs | 7 ½” | 30° | 24 x 36″ | 24 x 36″ | 50 x 50″ | 14 sec | 530 lbs |
TT45 Series | ||||||||
TT45-10 | 1000 lbs | 6 ½” | 45° | 24 x 30″ | 24 x 36″ | 36 x 48″ | 22 sec | 310 lbs |
TT45-15 | 1500 lbs | 6 ½” | 45° | 24 x 30″ | 24 x 36″ | 36 x 48″ | 22 sec | 325 lbs |
TT45-20 | 2000 lbs | 7 ½” | 45° | 24 x 36″ | 24 x 36″ | 50 x 50″ | 15 sec | 510 lbs |
TT45-40 | 4000 lbs | 7 ½” | 45° | 24 x 36″ | 24 x 36″ | 50 x 50″ | 16 sec | 520 lbs |
TT45-60 | 6000 lbs | 7 ½” | 45° | 24 x 36″ | 24 x 36″ | 50 x 50″ | 20 sec | 530 lbs |
TT60 Series | ||||||||
TT60-10 | 1000 lbs | 6 ½” | 60° | 24 x 30″ | 24 x 36″ | 36 x 48″ | 30 sec | 310 lbs |
TT60-15 | 1500 lbs | 6 ½” | 60° | 24 x 30″ | 24 x 36″ | 36 x 48″ | 50 sec | 325 lbs |
