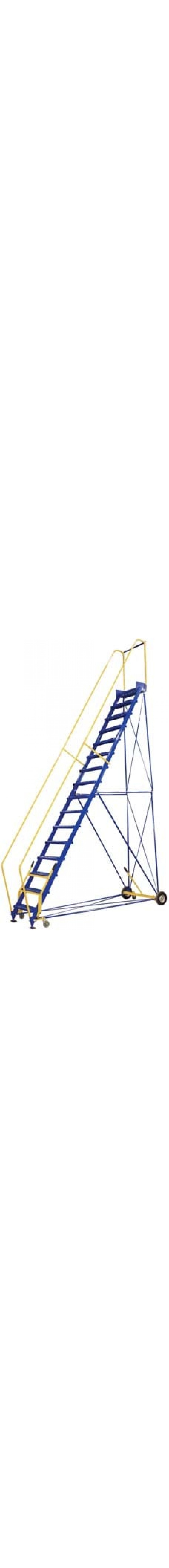

ESD-Safe Warehouse Ladders

ESD-Safe Warehouse Ladders

  ESD-Safe Warehouse Ladders Features:
  • Portable warehouse ladder for special ESD applications

  • Includes following features for ESD-Safe (anti-static) properties: -Conductive semi-gloss black powder-coated finish -Conductive wheels, gray rubber tread on polyolefin core -Grounding drag chain with resistor, nickle-plated brass construction

  • Weight on bottom step lifts casters for safe use when climbing

  • Rubber feet provided for floor protection

  • Heavy-duty weight capacity is 300 lbs

  • Features 60° standard climb angle

  • Each step features a grip-strut design for traction

  • Individual steps are 26" wide x 7" deep

  • Top step is 26" wide x 14" deep

  • Handrailing included on both sides of ladder with top cross-bar

  • Welded square tubular steel construction

  • Ships fully assembled and ready to use

  • Ladder complies with ANSI s20:20 standards

  • Note - ladders must be used on conductive floors to comply with ESD properties


ESD-Safe Warehouse Ladders
Model Step Quantity Top Step Net Wt.
Height (lbs.)
LAD-R-26-2-G-ESD 2 20" (1'-8") 98
LAD-R-26-4-G-ESD 4 40" (3'-4") 112
LAD-R-26-6-G-ESD 6 60" (5') 162
LAD-R-26-8-G-ESD 8 80" (6'-8") 220
LAD-R-26-10-G-ESD 10 100" (8'-4") 262
LAD-R-26-12-G-ESD 12 120" (10') 348
Optional Grounding Straps
ESD-WGW Optional user grounding strap, elastic adjustable wrist strap 1
ESD-HGW Optional user grounding strap, heel strap 1
ESD-GW-15 Optional ladder tethered grounding strap, 15' coil cord (extends to 20') 1
  Industrial Manlifts is your aerial access solution provider. If you do not see the size you need, please contact one of our technical sales reps at 888-730-8377 for assistance. We can customize.
