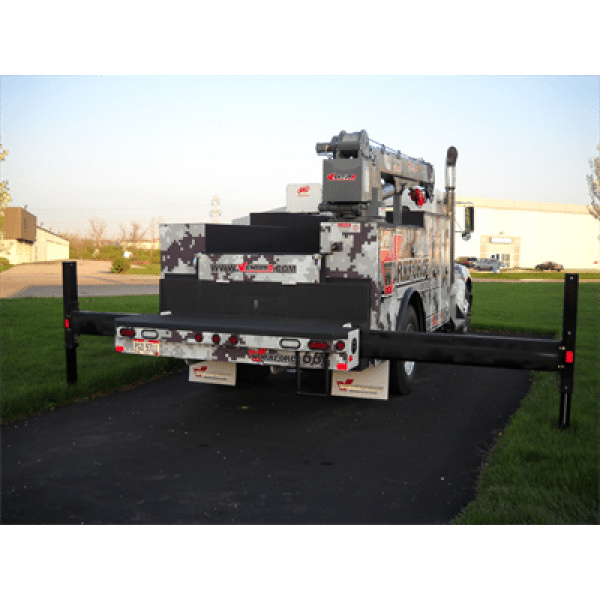

Electric Mast Outrigger Packages
Electric Mast Outrigger Packages
CT310KX Electric Mast Outrigger Packages:
| OUTRIGGER PACKAGES | ||
| Description | Part # | Weight |
| CRANKDOWN OUTRIGGER PACKAGE – Manual Pullout/Manual Crankdown. Full width mounting tube 3 1/2″ x 3 1/2″ x 88″. Curbside pullout (28 1/2″ extension), streetside permanent mount. Total spread of 126″. Vertical travel of 13 1/2″ pin adjustment plus 15 1/2 crank adjustment. | 18500-CD | 225 LBS |
| SIDE BRACKET TYPE – Single jackleg for utility body – Extends 0-24″ | 13500 | 24 LBS |
| FOLD AWAY TYPE – Single jackleg for platform body – Extends 27″-45″ | 11822-2 | 31 LBS |
CE6K Electric Mast Outrigger Packages:
| OUTRIGGER PACKAGES | ||
| Description | Part # | Weight |
| SIDE BRACKET TYPE – Single jackleg for utility body – Extends 0-24″ | 13500 | 24 LBS |
| FOLD AWAY TYPE – Single jackleg for platform body – Extends 27″-45″ | 11822-2 | 31 LBS |
CE2000 SERIES Electric Mast Outrigger Packages:
| OUTRIGGER PACKAGES | ||
| Description | Part # | Weight |
| SIDE BRACKET TYPE – Single jackleg for utility body – Extends 0-24″ | 13500 | 24 LBS |
| FOLD AWAY TYPE – Single jackleg for platform body – Extends 27″-45″ | 11822-2 | 31 LBS |
Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (727) 490-8839.
