Double Wide Scaffold Base Set

Double Wide Scaffold Base Set (78-90″ inches high) is the most versatile of all aluminum scaffolds and can be used in many applications including aircraft maintenance or used on stairways.

Double Wide Scaffold Base Set

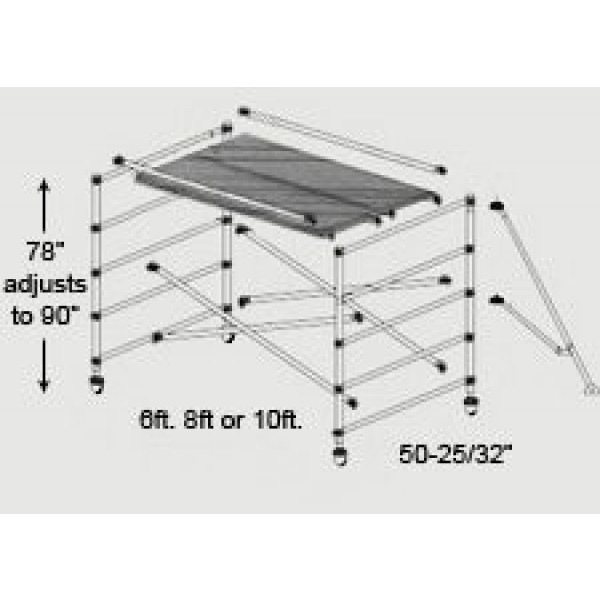

The Double Wide Scaffold Base Set (78-90" inches high) is the most versatile of all aluminum scaffolds and can be used in many applications including aircraft maintenance or used on stairways. Rolling Towers can be quickly and safely erected up to 44 feet with no tools required. Multiple spans can be combined.

  • Height 78-90"
  • Width  50-25/32"
  • 2 Double Wide Base Frames
  • 2 Horizontal Braces
  • 4 Diagonal Braces
  • 2 Platforms
  • 4 Casters
  • Available in 6 FT, 8 FT, or 10 FT Sets
  • Sure-Grip joints provide superior strength compared to traditional welding
  • Color coding for easy brace identification
  • Easily adjusts for uneven surfaces
  • Adjustable legs and locking casters
  • Computer numeric controlled manufacturing process insures precise specifications on all frames and components
  • Aircraft grade drawn aluminum tubing with solid castings on all frames
Part Numbers
Diagonal Brace
6Ft. = D6
8Ft. = D8
10Ft. = D10
Horizontal Brace
6Ft. = H6
8Ft. = H8
10Ft. = H10
Guardrail
End Frame

Part# DWGR
4 Ft. Extension
End Frame

Part# DWUF4
5' 6" Extension
End Frame

Part# DWUF56
Platforms
6 ft. Part# VPH06
8 ft. Part# VPH08
10 ft. Part# VPH10
Interlock Clip
Part# IC87
Casters
5" = 5C
8" = 8C
Large Adjustable Outrigger
Part# LAOR
Adjustable Outrigger
Part# AOR
(Not Shown)
Baseframe
Part# DWBF

Designed to the strict guidelines of the American National Standards Institute (ANSI) and the regulations of the Occupational Safety & Health Administration (OSHA).

Ships anywhere in the United States and Internationally.

Industrial Man Lifts is an aerial work platform and aerial access solution provider. We can customize any aerial access solution to fit your needs. For more information or to order, (727) 490-8839.
