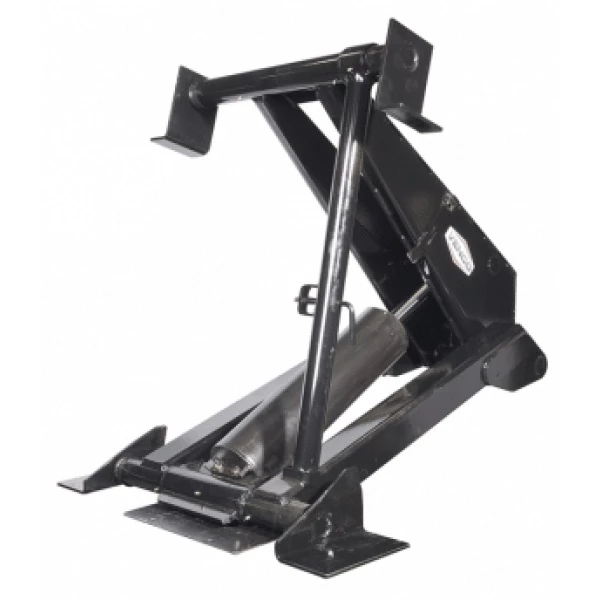

Conversion/Dump Hoists – VC620

NTEA Class E/50 hoist, featuring 6″ bore x 20″ stroke cylinder. Available with or without subframe. Industrial Manlifts (888)730-8377

Conversion/Dump Hoists - VC620

  NTEA Class E/50 hoist, featuring 6" bore x 20" stroke cylinder. Available with or without subframe.   Conversion/Dump Hoists - VC620 Features:
For 12′ – 16′ bodies
10 – 20 Ton capacity
Available with 6″ cylinder and 20″ stroke
Low mounting height scissors design eliminates interference with chassis
Pre-installed self-locating body prop
Fits 29 1/2″ – 34″ truck frames
9-3/4″ Subframe mounting height
Includes 4″ Subframe rail
Conversion Class E
Dump Class 50
High pressure, double-acting cylinder with 6″ bore x 20″ stroke and multi-hard chromed and polished piston rod
Pumps: Electric single-acting, H.D. motor, 8 qt. reservoir
  • Electric double-acting, H.D. motor, 4 qt. reservoir
  • 8 piston PTO driven, 7/8″ square shaft, 21 qt. reservoir
  • Direct mount gear PTO driven, SAE “A” 2 bolt flange, 5/8″ -9 spline shaft 9 qt. reservoir
Operating pressure: 3000/1000 PSI
Weight:
  • VC620: 625 lbs.
  • VC620 w/SF: 745 lbs.
