BELL UH-1 Towbar

BELL UH-1 Towbar

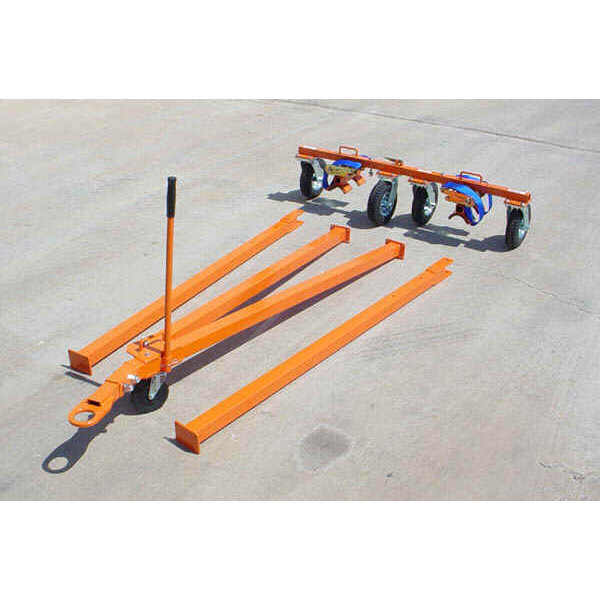

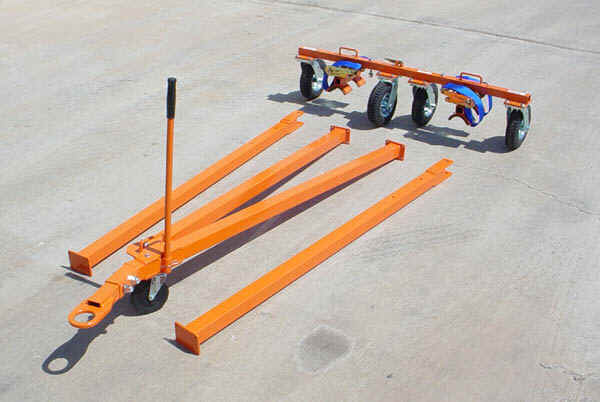

BELL UH-1 Towbar Features:

Industrial Man Lifts towing systems (BELL UH-1 Towbar) are designed for one man operation. Some of the advantages of these towbars are that they are easy to use and do not interfere with equipment hung under the helicopter. They are very reasonably priced. The towbars can be installed in 3-5 minutes by one man. The caster wheel assembly can be used separate from the towbar if desired.

To install the bell uh-1 towbar, place the caster wheels over the skid tubes, then raise the helicopter up on its' ground handling wheel. This allows enough room to slip the nylon straps under the skid and into the ratchets. Then ratchet the skid up into the rubber protected cups. The towbar can be attached to most any type towing vehicle.  Note: The HM-7M model number has been changed to the HT-7M model number to reflect the term "Helicopter Towbar".


BELL UH-1 Towbar

BELL UH-1 Towbar

BELL UH-1 Towbar Specifications:


  • Skid tube dia. 3 1/4" to 4 1/2"
  • Length 140"
  • Legs can be split into 4 pcs. of 5 1/2 ft. for easier transport
  • Skid spread 25" to 120"
  • Weight 155 lbs.
  • Wheel: Caster & locking
  • Tires: Pneu. 2.50-4 @ 50 psi.
  • Hitch ring 2" inner dia.


  • Color orange powder coating
  • NSN 1730-00-294-3031

Industrial Manlifts is YOUR total aerial access solution provider. We can customize any aerial access solution for any project. Operators standing by, (727) 490-8839.
