Auto-Hite Carts
Auto-Hite Carts
Auto-Hite Carts Features:

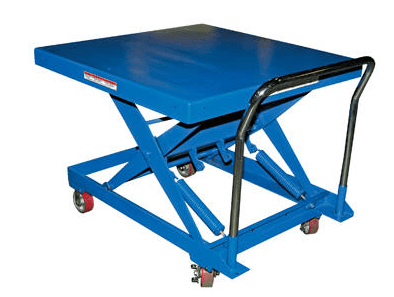

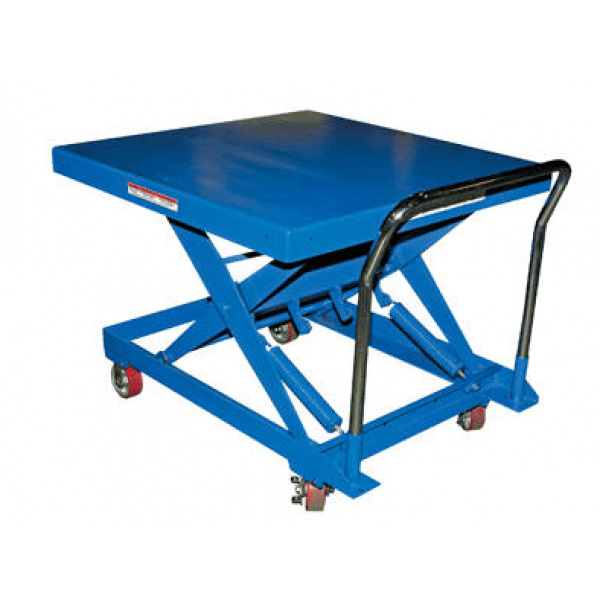

The Auto-Hite Cart raises or lowers as materials are removed or added to the platform, keeping material at an ergonomic work height. Increase efficiency while reducing potentially harmful bending and twisting motions. Carts utilize tension springs which can be adjusted in order to fit each particular application. All steel construction with removable handle. Polyurethane casters are 5" x 2", (2) rigid and (2) swivel with brake casters. Height with handle is 44-1/4".
| Auto-Hite Carts | ||||||
| Model | PDF's | Platform (WxL) |
Capacity (lbs) | Service Range | Movement* lbs./Inch |
Wt. (lbs) |
| SCSC-500-2040 | 20-3/4"x40" | 500 | 14" to 34" | 25#/1" | 300 | |
| SCSC-500-4242 | 42"x42" | 500 | 14" to 34" | 25#/1" | 404 | |
| SCSC-750-2040 | 20-3/4” x 40” | 750 | 14” to 34” | 38#/1” | 320 | |
| SCSC-1000-4242 | 42"x42" | 1,000 | 14" to 34" | 50#/1" | 413 | |
| SCSC-1000-4848 | 48"x48" | 1,000 | 14" to 34" | 50#/1" | 435 | |
| SCSC-2000-4242 | 42"x42" | 2,000 | 14" to 34" | 100#/1" | 477 | |
| SCSC-2000-4848 | 48"x48" | 2,000 | 14" to 34" | 100#/1" | 497 | |
|
*Approximate ratio - check with factory for minimum weight requirements |
||||||
Please contact Industrial Manlifts for specifications and RFQ's.
