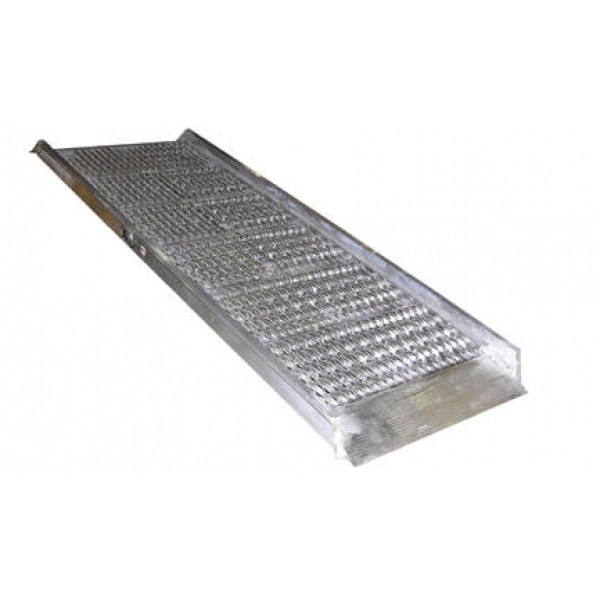

Aluminum Grip-Strut Walk Ramps
Aluminum Grip-Strut Walk Ramps Features:
Load and unload trucks when docks are unavailable. The open deck design allows snow, ice and water to fall through ramp providing a positive grip for delivery men, shippers and receivers. 100% welded aluminum construction is light-weight and will not rust. Ramps feature a 2″ high safety curb on each side. Overlap style end lip rests on trailer bed and provides smooth transition. Each unit includes two safety chains to connect ramp to trailer for safety.
Aluminum Grip-Strut Walk Ramps | ||||||
Model | Length | 4-Wheel Cart Capacity (lbs) | 2-Wheel Cart Capacity (lbs) | Width/Usable Width | Wt. | |
(lbs) | ||||||
AWR-G-28-6A | 6′ | 2,800 | 2,000 | 29-3/8″/26″ | 41 | |
AWR-G-28-7A | 7′ | 2,800 | 1,800 | 29-3/8″/26″ | 59 | |
AWR-G-28-8A | 8′ | 2,500 | 1,650 | 29-3/8″/26″ | 61 | |
AWR-G-28-9A | 9′ | 2,500 | 1,600 | 29-3/8″/26″ | 63 | |
AWR-G-28-10A | 10′ | 2,200 | 1,500 | 29-3/8″/26″ | 68 | |
AWR-G-28-12A | 12′ | 1,900 | 1,400 | 29-3/8″/26″ | 77 | |
AWR-G-28-14A | 14′ | 1,600 | 1,200 | 29-3/8″/26″ | 89 | |
AWR-G-28-16A | 16′ | 1,000 | 1,000 | 29-3/8″/26″ | 122 | |
AWR-G-38-6A | 6′ | 2,800 | 2,000 | 39-3/8″/36″ | 55 | |
AWR-G-38-7A | 7′ | 2,800 | 1,800 | 39-3/8″/36″ | 59 | |
AWR-G-38-8A | 8′ | 2,500 | 1,650 | 39-3/8″/36″ | 66 | |
AWR-G-38-9A | 9′ | 2,500 | 1,600 | 39-3/8″/36″ | 73 | |
AWR-G-38-10A | 10′ | 2,200 | 1,500 | 39-3/8″/36″ | 80 | |
AWR-G-38-12A | 12′ | 1,900 | 1,400 | 39-3/8″/36″ | 94 | |
AWR-G-38-14A | 14′ | 1,600 | 1,200 | 39-3/8″/36″ | 123 | |
Aluminum Grip-Strut Walk Ramps with Handrail | ||||||
AWR-G-38-16A-HR | 16′ | 1,000 | 1,000 | 39-3/8″/36″ | 142 | |
AWR-G-28-6A-HR | 6′ | 2,800 | 2,000 | 29-3/8″/26″ | 41 | |
AWR-G-28-7A-HR | 7′ | 2,800 | 1,800 | 29-3/8″/26″ | 59 | |
AWR-G-28-8A-HR | 8′ | 2,500 | 1,650 | 29-3/8″/26″ | 61 | |
AWR-G-28-9A-HR | 9′ | 2,500 | 1,600 | 29-3/8″/26″ | 63 | |
AWR-G-28-10A-HR | 10′ | 2,200 | 1,500 | 29-3/8″/26″ | 68 | |
AWR-G-28-12A-HR | 12′ | 1,900 | 1,400 | 29-3/8″/26″ | 77 | |
AWR-G-28-14A-HR | 14′ | 1,600 | 1,200 | 29-3/8″/26″ | 89 | |
AWR-G-28-16A-HR | 16′ | 1,000 | 1,000 | 29-3/8″/26″ | 122 | |
AWR-G-38-6A-HR | 6′ | 2,800 | 2,000 | 39-3/8″/36″ | 55 | |
AWR-G-38-7A-HR | 7′ | 2,800 | 1,800 | 39-3/8″/36″ | 59 | |
AWR-G-38-8A-HR | 8′ | 2,500 | 1,650 | 39-3/8″/36″ | 66 | |
AWR-G-38-9A-HR | 9′ | 2,500 | 1,600 | 39-3/8″/36″ | 73 | |
AWR-G-38-10A-HR | 10′ | 2,200 | 1,500 | 39-3/8″/36″ | 80 | |
AWR-G-38-12A-HR | 12′ | 1,900 | 1,400 | 39-3/8″/36″ | 94 | |
AWR-G-38-14A-HR | 14′ | 1,600 | 1,200 | 39-3/8″/36″ | 123 | |
AWR-G-38-16A-HR | 16′ | 1,000 | 1,000 | 39-3/8″/36″ | 142 |
Please contact Industrial Manlifts for specifications and RFQ’s.
