Air Balance Jib Lifter

Air Balance Jib Lifter

Air Balance Jib Lifter Features:

The Air Balancers achieve high performance, excellent safety, and low cost in the handling of heavy materials. Effortlessly handle materials in a three dimensional work space. The push-button hand control operates the pneumatic cylinder, raising and lowering the cable, in turn, positioning the load. Three mounts available



Mechanical & Pneumatic Hoist Attachments

Pneumatic Vacuum Lifter is designed to lift products with smooth, fl at and non-porous surfaces.  Push button to operate vacuum to grab product. Release button to release product. Positioning of product is provided by the Air Balance Jib Lifter.

Double Hook Lifter is designed to lift virtually any type of object, either small or large, long or short, round or fl at. Simple double-hook design with mechanical operation only. Positioning of product is provided by the Air Balance Jib Lifter or Hoist.

Air Balance Jib Lifter
Model Stroke Max Arm Length Capacity Arm Air Pressure Wt. (lbs)
(lbs) Rotation
  Floor Mount

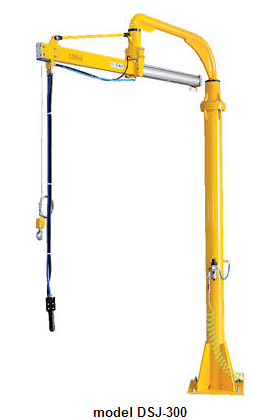

DSJ-300 57-1/2" 93" 250 360º 100 psi 647
DSL-300 47-1/4" 78-1/4" 250 360º 100 psi 697
DSC-300 78-3/4" 86-1/2" 350 360º 100 psi 823
  Portable
DSJ-300-P 57-1/2" 93" 250 360º 100 psi 1043
DSL-300-P 47-1/4" 78-1/4" 250 360º 100 psi 1087
DSC-300-P 78-3/4" 86-1/2" 350 360º 100 psi 1219
  Ceiling Mount
DSJ-300-C 57-1/2" 93" 250 360º 100 psi 471
DSL-300-C 47-1/4" 78-1/4" 250 360º 100 psi 515
DSC-300-C 78-3/4" 86-1/2" 350 360º 100 psi 647
Mechanical & Pneumatic Hoist Attachments
Model Description Capacity Wt. (lbs)
(lbs)
VAC-6 Pneumatic Vacuum 250 32
LMEC-DH Double Hook 250 20

Please contact Industrial Manlifts for specifications and RFQ's.

 Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377.
