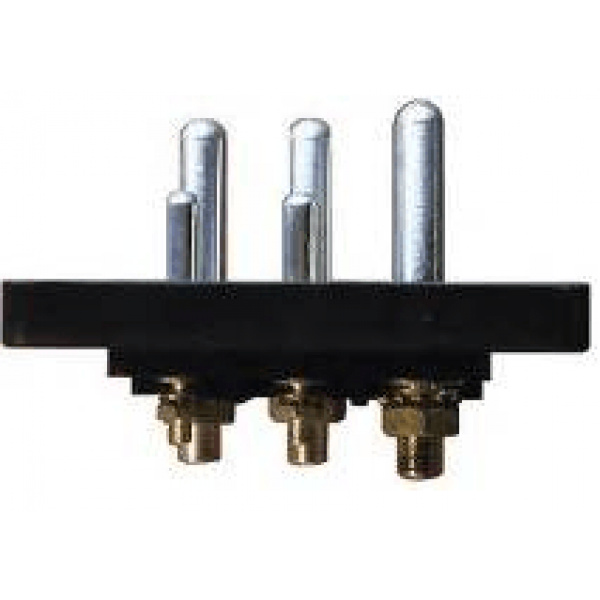

400 HZ Receptable

400 Hz, 115 V , electrical power receptacle. l Industrial Manlifts 727-490-8839

400 HZ Receptable

400 HZ Receptable Features:

  • 400 Hz, 115 V , electrical power receptacle.
  • Chemically Surface Treated (Green) per MIL-C-5541.
  • Patented plug.
  • Aluminium shield.
  • Sleeves are solid copper, silver plated. With solenoid pin.
  • Corrosion proof.
  • Mates with 400 Hz external power plugs.
  • Cable assemblies manufactured to customer requirements available
  • Hardness 13800psi.
  • Glass transition temperature of about 150 °C.
  • Average change in Resistance after 100 dry cycles: < 2µΩ.
  • Maximum 1600A based on the resistance this would give less than a .1V drop per contact.
