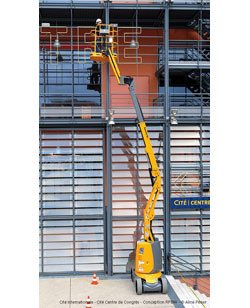

HA 33 CJ + Articulating Boom Lift

HA 33 CJ + Articulating Boom Lift is part of the range of aerial work platforms /electric articulating boom lifts for people and material lifting. Increased Productivity Simultaneous drive and rotation Tight turning radius Zero tailswing Compact stowed height passes through standard doorways 3 ft 11 in width Specs at a glance: 37 ft 10 in working height 15 […]

Written By Industrial Man Lifts

On January 11, 2012
"

Read more

HA 33 CJ + Articulating Boom Lift is part of the range of aerial work platforms /electric articulating boom lifts for people and material lifting.

Increased Productivity

  • Simultaneous drive and rotation
  • Tight turning radius
  • Zero tailswing
  • Compact stowed height passes through standard doorways
  • 3 ft 11 in width

Specs at a glance:

  • 37 ft 10 in working height
  • 15 ft 7 in up and over clearance
  • 3.7mph max drive speed
  • 25% gradeability
Working height 37 ft 10 in
Platform height 31 ft 10 in
Lift capacity (lb) 507
Platform size 3 ft 9 in x 2 ft 7 in
Horizontal reach 23 ft 8 in
Up and over clearance 15 ft 7 in
Stowed Height 6 ft 6 in
Width 3 ft 11 in
Length 18 ft 6 in
Gradeability (%) 25
Power source 48 V – 390 amp-hr (C5)
Weight (lb) 15960

HA 33 CJ + Articulating Boom Lift people and material lifting. For more information or to order the HA 33 CJ + Articulating Boom Lift, call (888) 730-8377. IndustrialManLifts.com is your aerial access solution provider.
