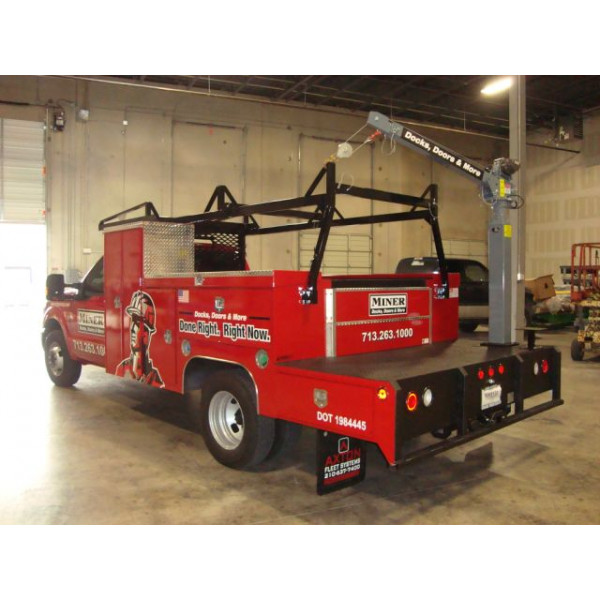

CE6K Truck-Mounted Electric Mast Crane 2000lbs Lifting Capacity

The CE6K Truck-Mounted Electric Mast Crane 2000lbs Lifting Capacity is a 2,000 lb. crane and is available with your choice of boom sizes, mast heights, and winches to meet a variety of lifting needs. Industrial Manlifts (888)730-8377

CE6K Truck-Mounted Electric Mast Crane 2000lbs Lifting Capacity

  CE6K Truck-Mounted Electric Mast Crane 2000lbs Lifting Capacity Features:   The CE6K Truck-Mounted Electric Mast Crane 2000lbs Lifting Capacity is a 2,000 lb. crane and is available with your choice of boom sizes, mast heights, and winches to meet a variety of lifting needs. Features electric winch, manual rotation, manual extension, and manual elevation.

FEATURES

2,000 LBS Lifting Capacity at 3 ft.
1,500 LBS Lifting Capacity with 120V AC Winch
6,000 FT-LB Moment Rating
Electric Power (12V DC or 120V AC)
3-5 FT. manual boom; optional 4-7 FT. manual boom
3-position boom elevation (20 deg., 40 deg., 60 deg.)
Compact footprint: 10″ x 10″ base plate with 7.5″ x 7.5″ bolt pattern
Standard Winch Features:
35 FT. of 3/16″ aircraft-quality wire rope
12V DC permanent magnet, 1.3 hp motor
Planetary geartrain with 159:1 reduction
Wrap spring brake
Heavy Duty Winch Features:
65 Ft. of 3/16″ aircraft-quality wire rope
12V DC permanent magnet, 1.5 hp motor
3-Stage planetary geartrain with 216:1 reduction
Dual load applied and dynamic braking system
3.5″ diameter drum meets ANSI B30.5 specifications

STANDARD EQUIPMENT

Remote Control Pendant: 12 FT. Cord with Quick Disconnect
Master Disconnect Switch Kit
Load Block with Swivel Hook and Safety Latch
Battery Cable: 25 FT., 4-Gauge
Weight: 247 lbs. (3-5 Ft. boom)
Weight: 265 lbs. (4-7 Ft. boom)

OPTIONS

Short mast for utility body mounting
120V AC winch (1,500 lb. max capacity)
150 AMP Circuit Breaker Kit for Standard Duty 250 AMP Circuit Breaker Kit for Heavy Duty
  Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377.
