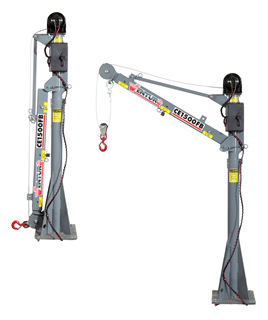

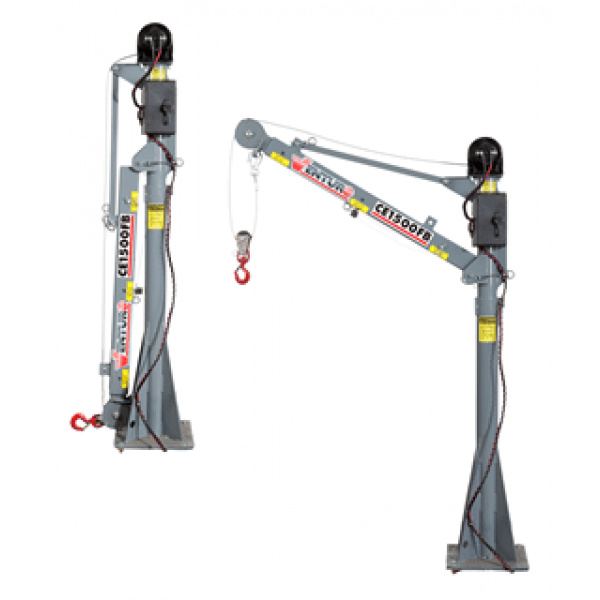

CE1500FB Truck-Mounted Electric Mast Crane 1500lbs Lifting Capacity

The CE1500FB Truck-Mounted Electric Mast Crane 1500lbs Lifting Capacity is an economical choice for light and medium-duty applications. Industrial Manlifts (888)730-8377

CE1500FB Truck-Mounted Electric Mast Crane 1500lbs Lifting Capacity

CE1500FB Truck-Mounted Electric Mast Crane 1500lbs Lifting Capacity Features:   The CE1500FB Truck-Mounted Electric Mast Crane 1500lbs Lifting Capacity is an economical choice for light and medium-duty applications. The CE1500FB is a 1,500 LB capacity crane with electric winch, manual rotation & extension, and a folding boom.

FEATURES

1,500 LBS Lifting Capacity
4,500 FT-LBS crane moment rating
Electric Power (12V DC or optional 120V AC)
3-5 FT. manual extension boom folds for compact storage
Manual 360-degree rotation with band brake provides unlimited controlled load positioning
Integrated surface mounting socket with 12″ x 12″ base plate
Weight: 165 LBS.
Master Disconnect Switch Kit
Meets ANSI B30.5 Safety Standards
Meets OSHA 1910.180 Requirements

WINCH FEATURES

12V DC, 1.3 hp motor
Planetary geartrain with 123:1 reduction
Dynamic motor braking for controlled load lowering
25 Ft. of 3/16″ aircraft-quality wire rope
Load Block with swivel hook and safety latch for maximum capacity loads
Remote Control Pendant: 12 FT. cord with quick disconnect
  Industrial Man Lifts is your aerial access solution provider. We can customize any product for any size job. Operators always standing by, (888) 730-8377.
